Pillar Caps
MenuPillar Caps
We produce both standard and bespoke Pillar Caps also known as Pillar Copings in a wide range of design styles, finishes and sizes to compliment our extensive range of wall copings.
For further information regarding Pillar Caps Please contact a member of our building Sales Team on 028 2565 2566, Ext 2
Make an Enquiry

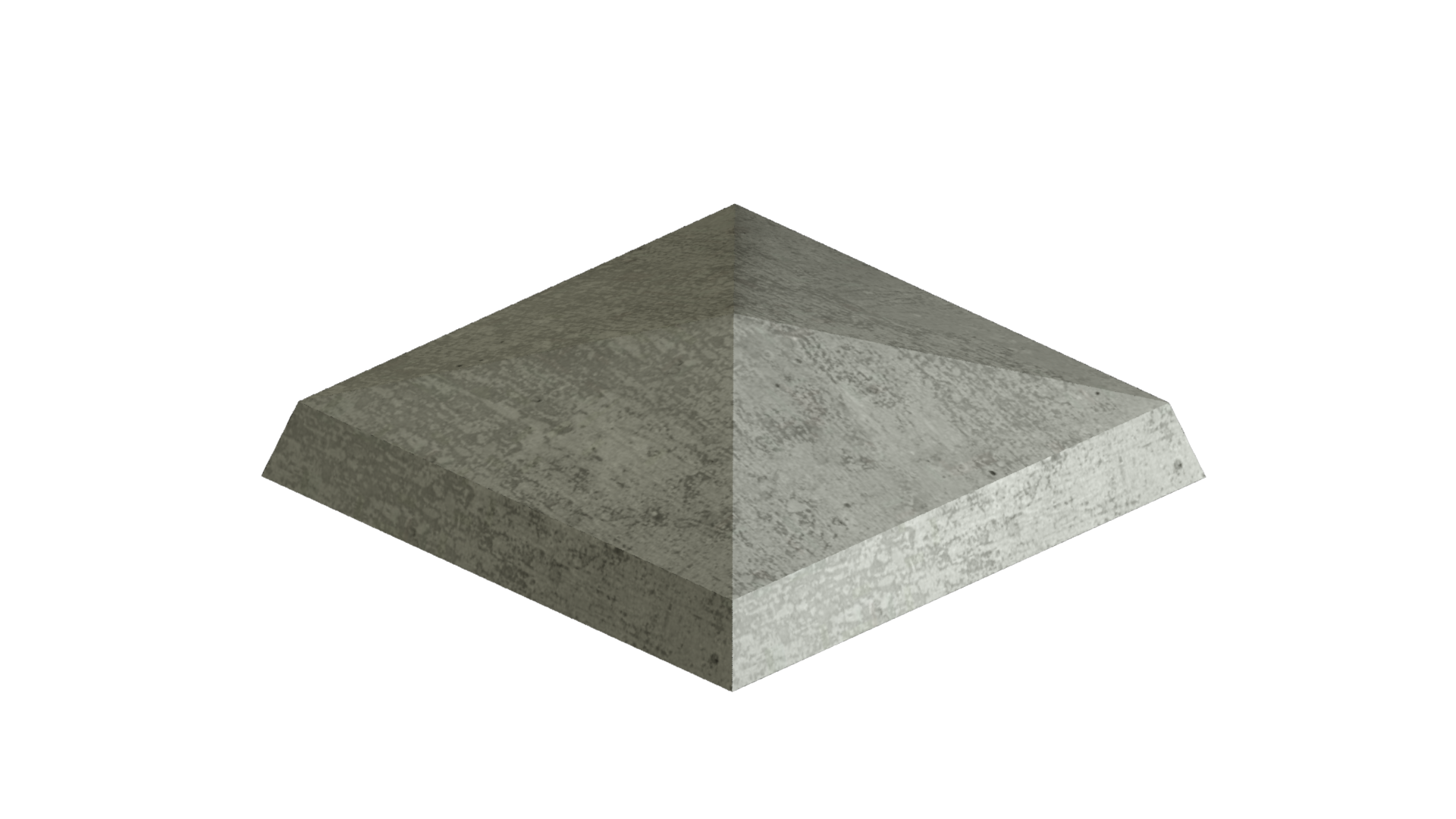

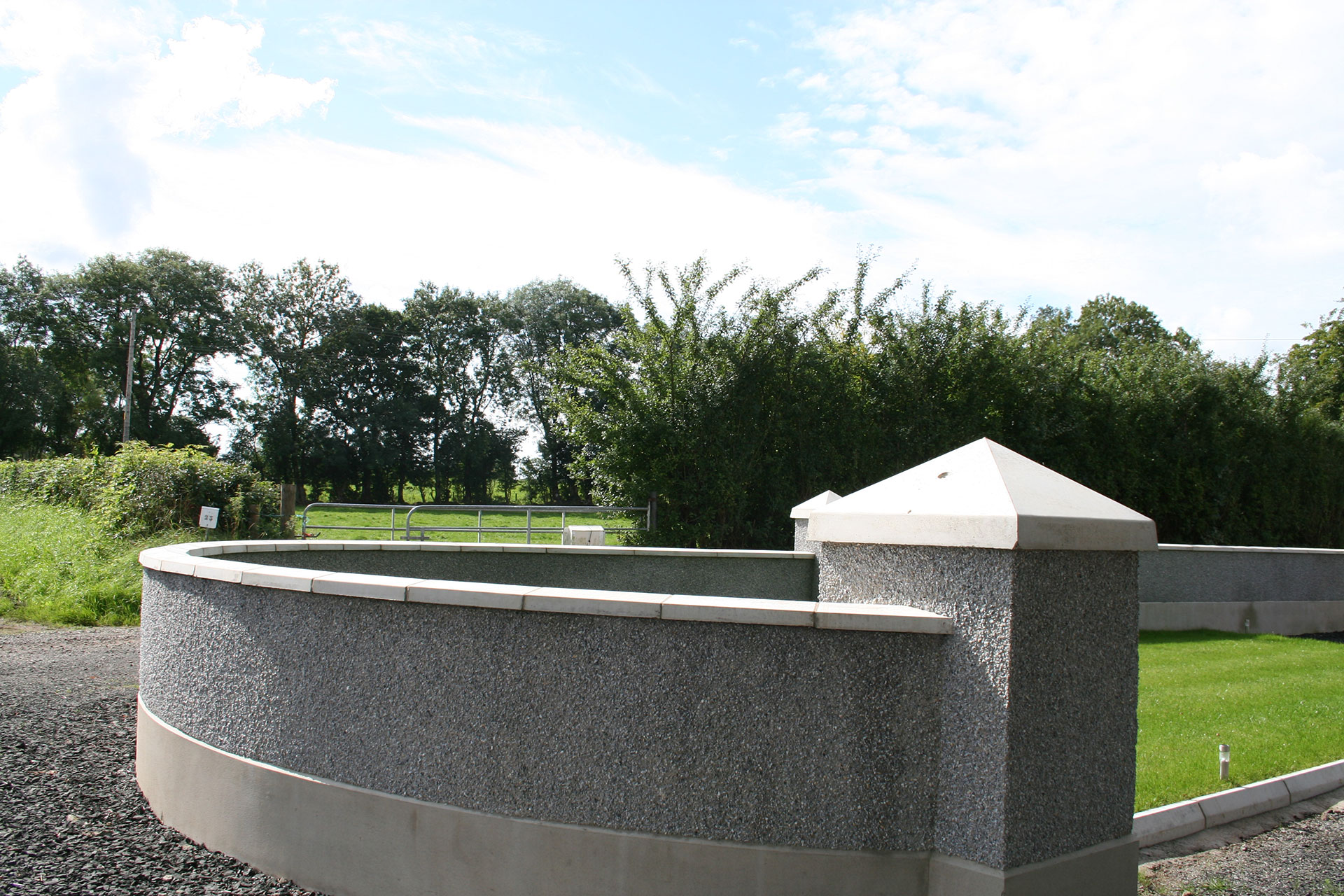

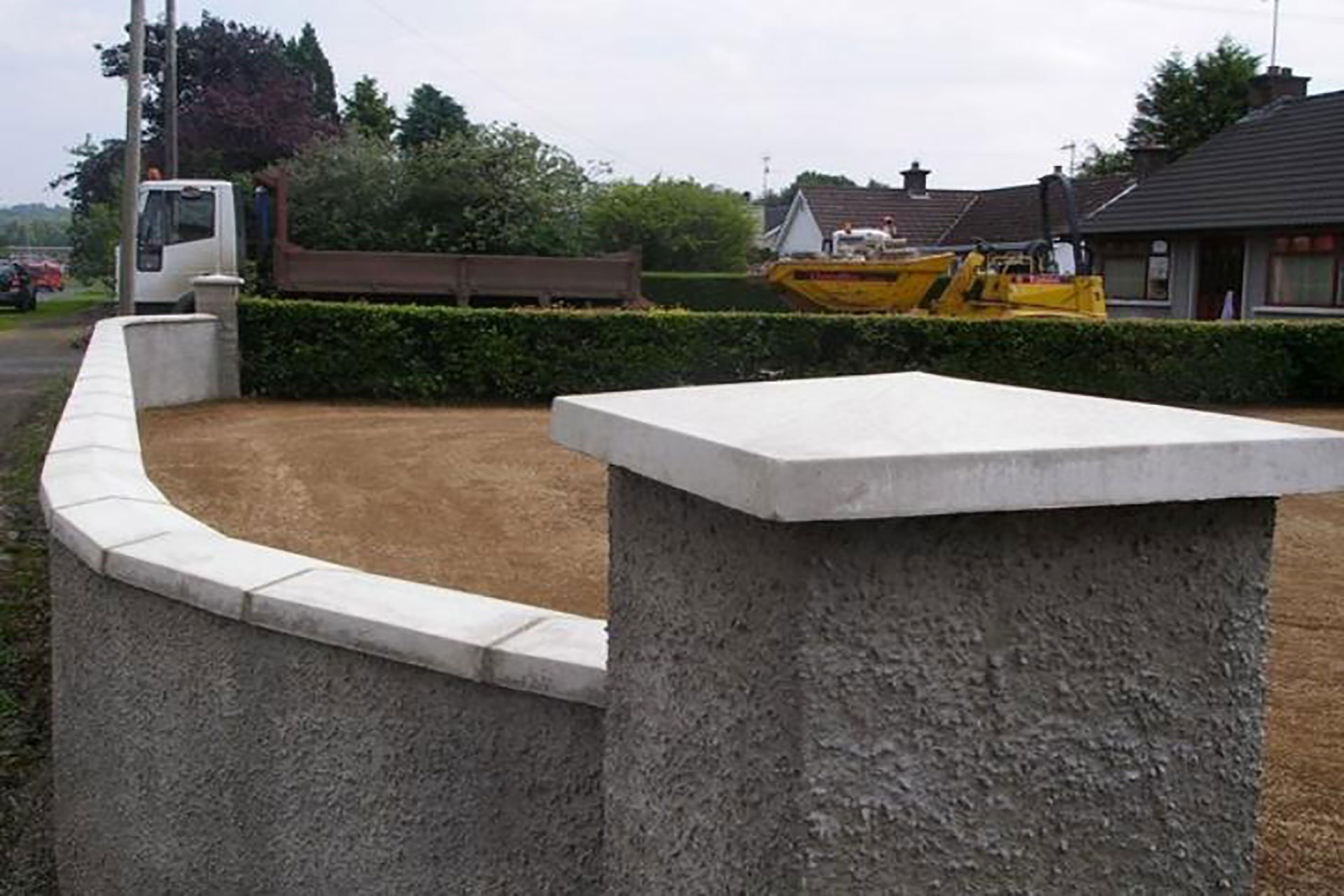

Low Pyramid Pillar Cap
| Size | Width (mm) |
Total Height (mm) |
Base Height (mm) |
|---|---|---|---|
| 10" | 225 | 51 | 32 |
| 12" | 305 | 70 | 38 |
| 16" | 405 | 76 | 44 |
| 18" | 445 | 102 | 51 |
| 22" | 560 | 127 | 51 |
| 24" | 610 | 127 | 51 |
| 27" | 685 | 127 | 51 |
| 31" | 790 | 152 | 52 |
| 36" | 920 | 90 | 60 |

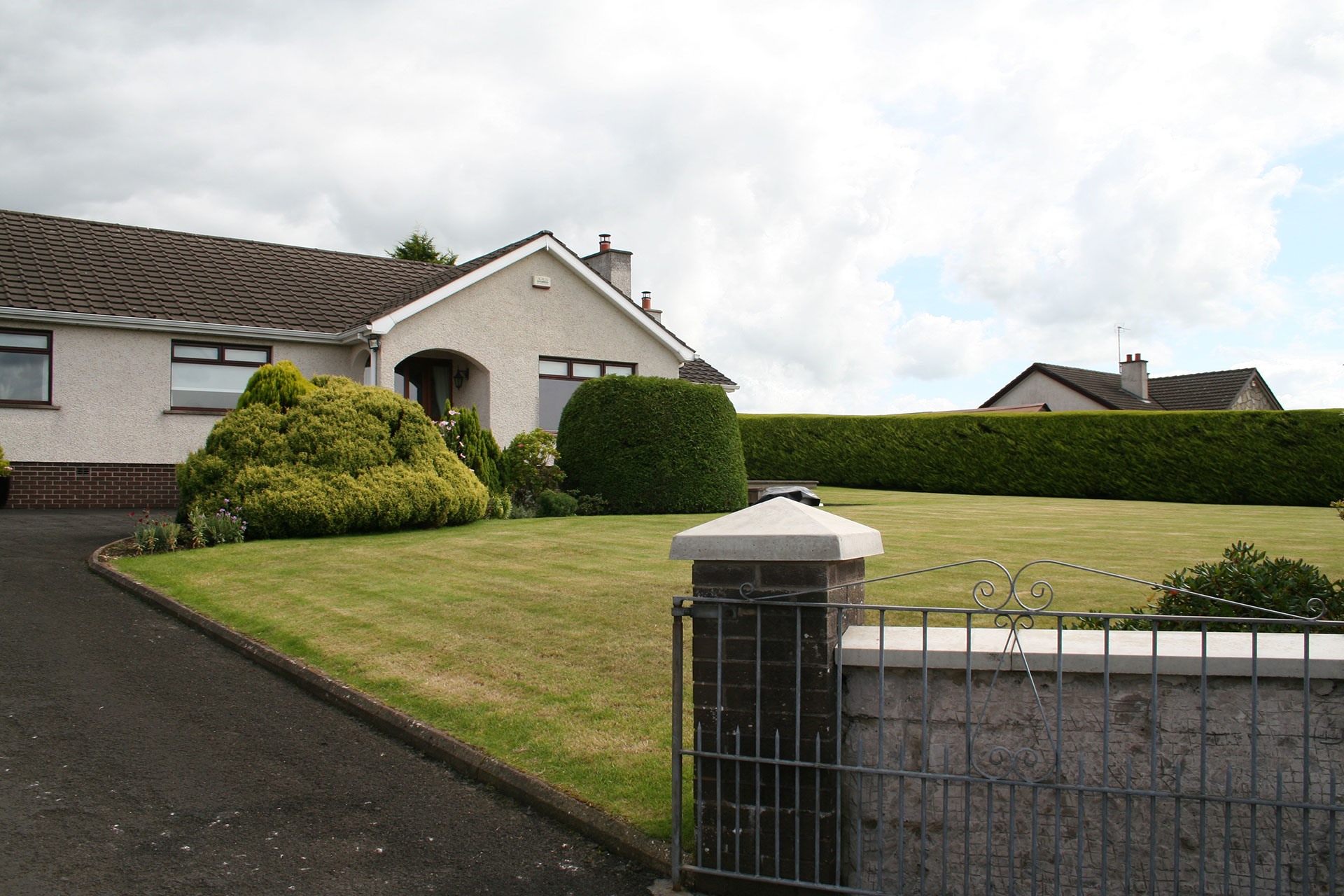

Medium and Large Pyramid Pillar Cap
| Type | Width (mm) |
Total Height (mm) |
Base Height (mm) |
|---|---|---|---|
| 22" | 560 | 200 | 75 |
| 22" | 560 | 305 | 100 |
| 36" | 900 | 350 | 100 |

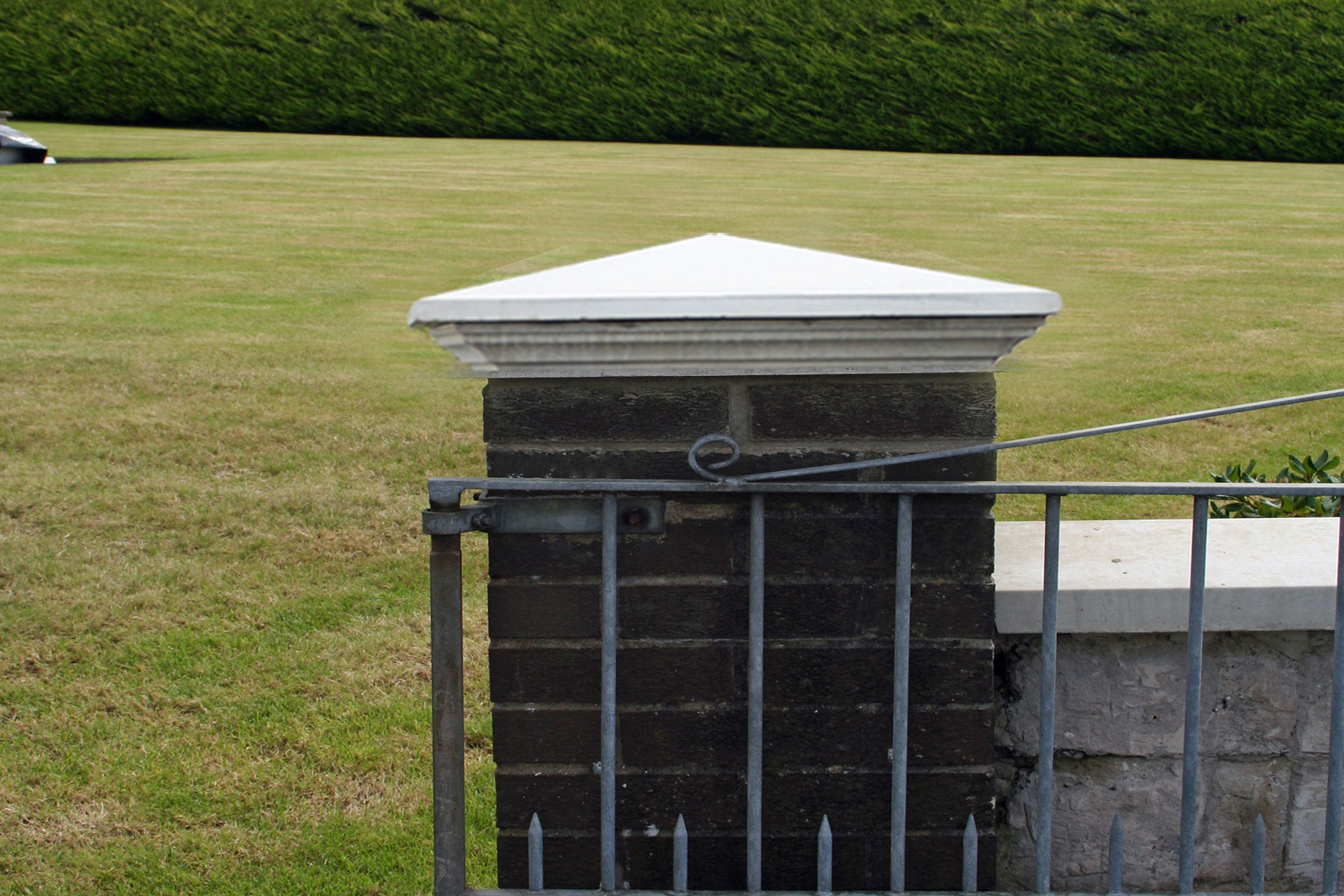

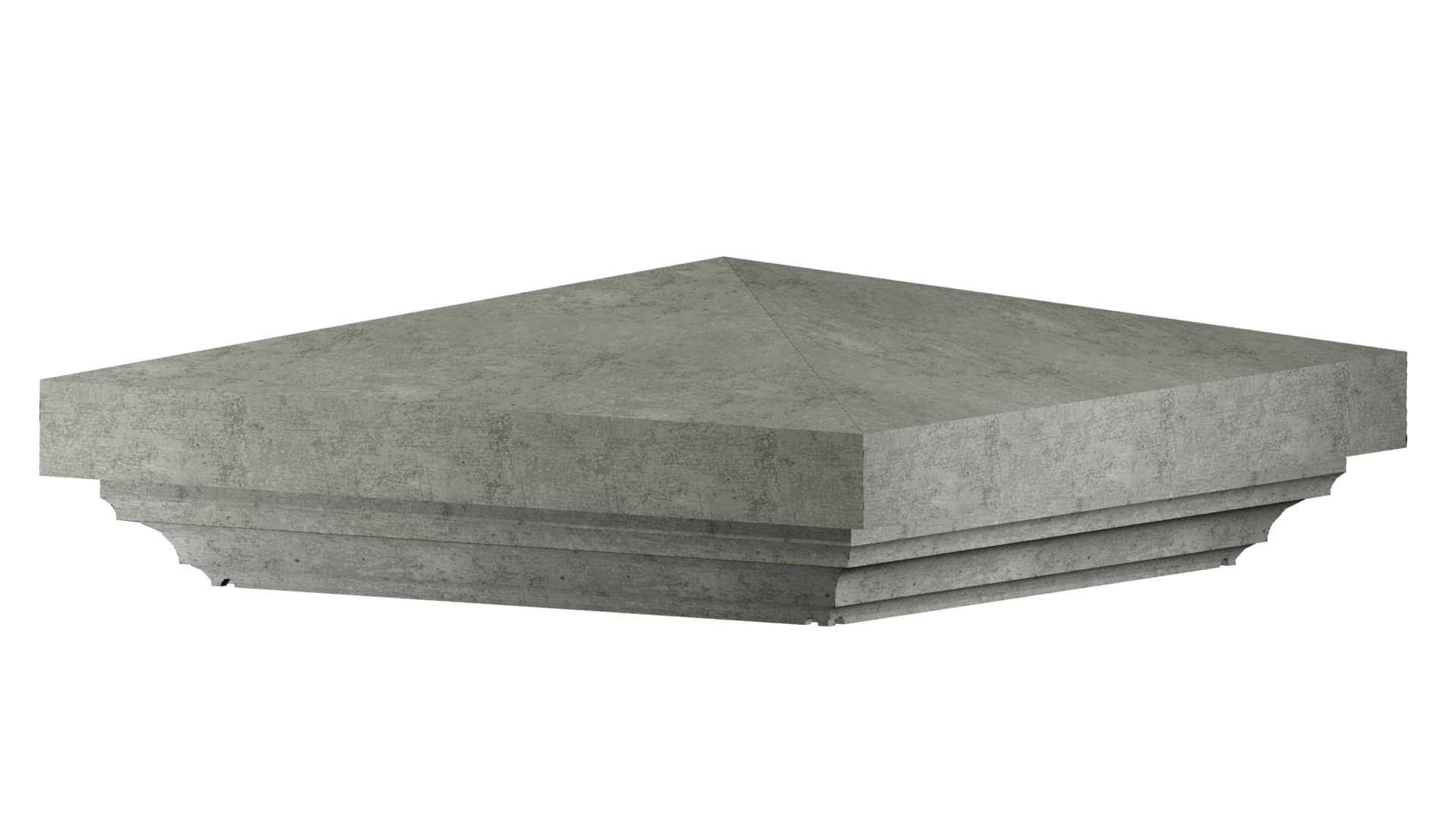

Regal Pillar Cap
| Bottom Width (mm) |
Middle Width (mm) |
Top Width (mm) |
Height (mm) |
Combination Code |
|---|---|---|---|---|
| 560 | 705 | 790 | 240 | DCC22 + PC31 |
| 685 | 830 | 900 | 190 | DCC27 + PC36 |

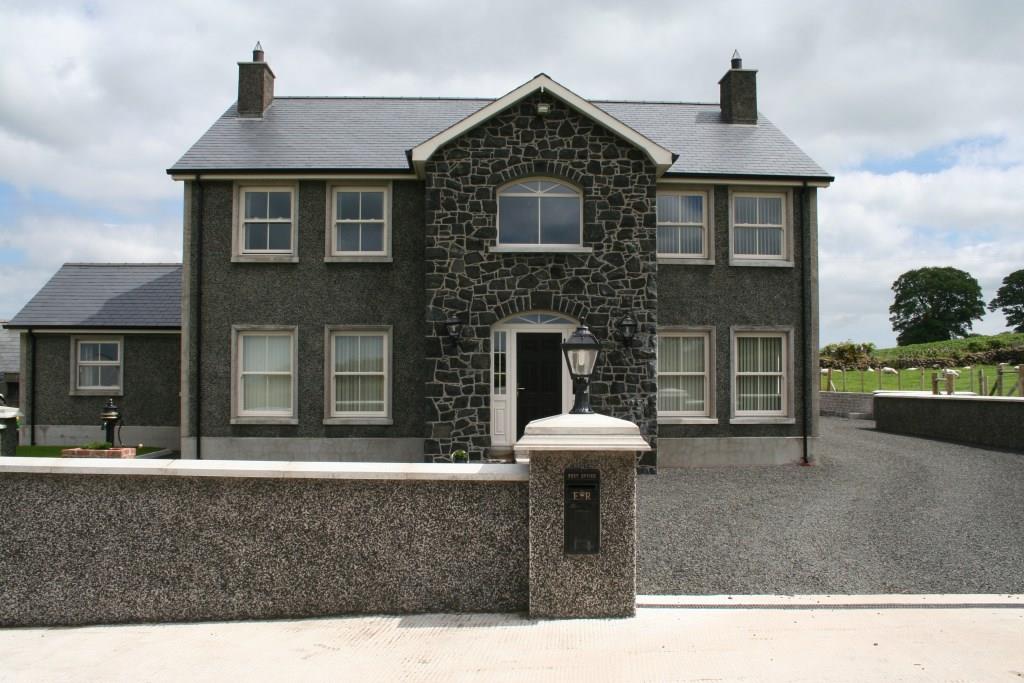

Stepped Pillar Cap
| Bottom Width (mm) |
Top Width (mm) |
Height (mm) |
Combination Code |
|---|---|---|---|
| 705 | 560 | 240 | DCC22 + PC22 |
| 830 | 685 | 240 | DCC27 + PC27 |
| 930 | 785 | 260 | DCC31 + PC31 |

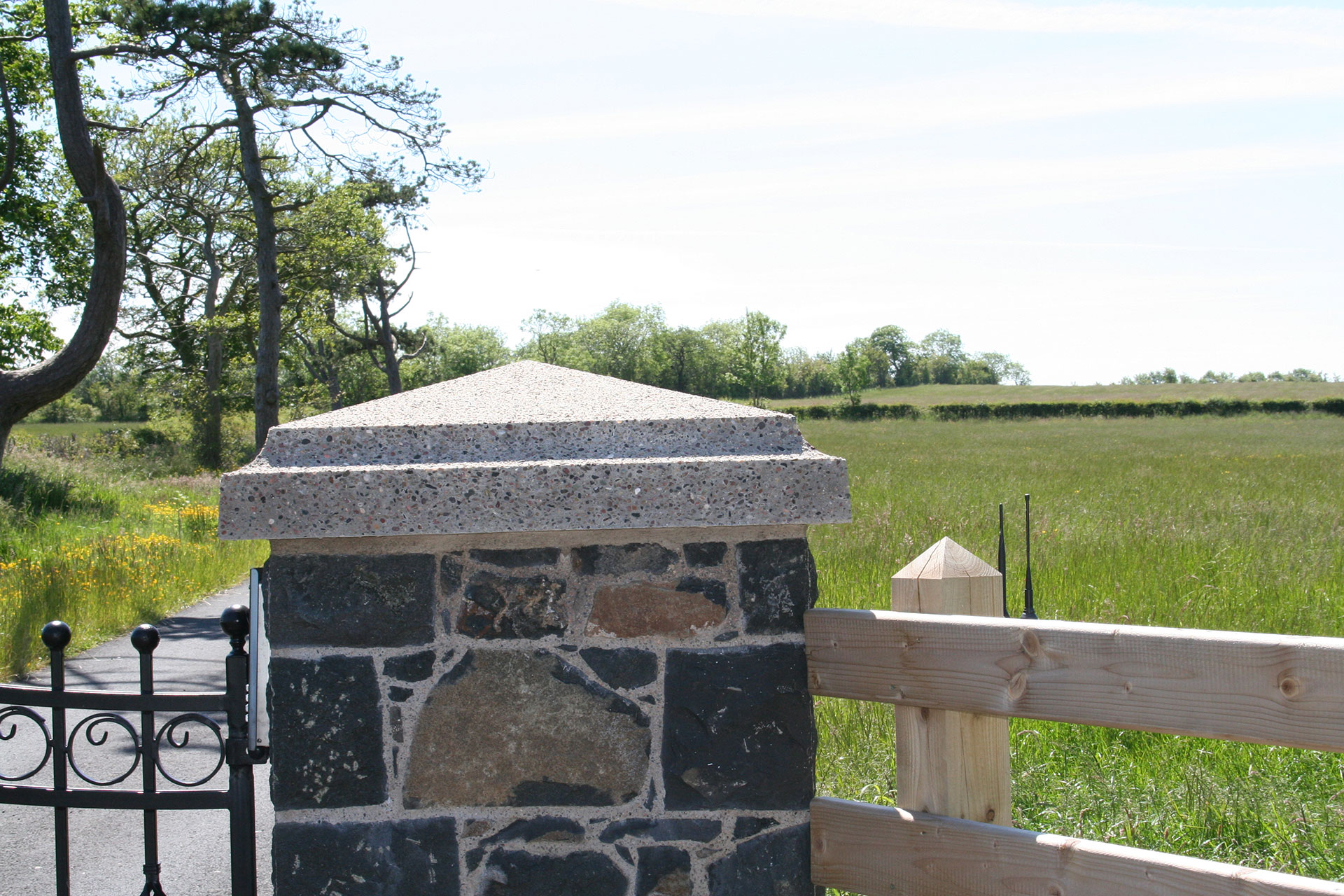

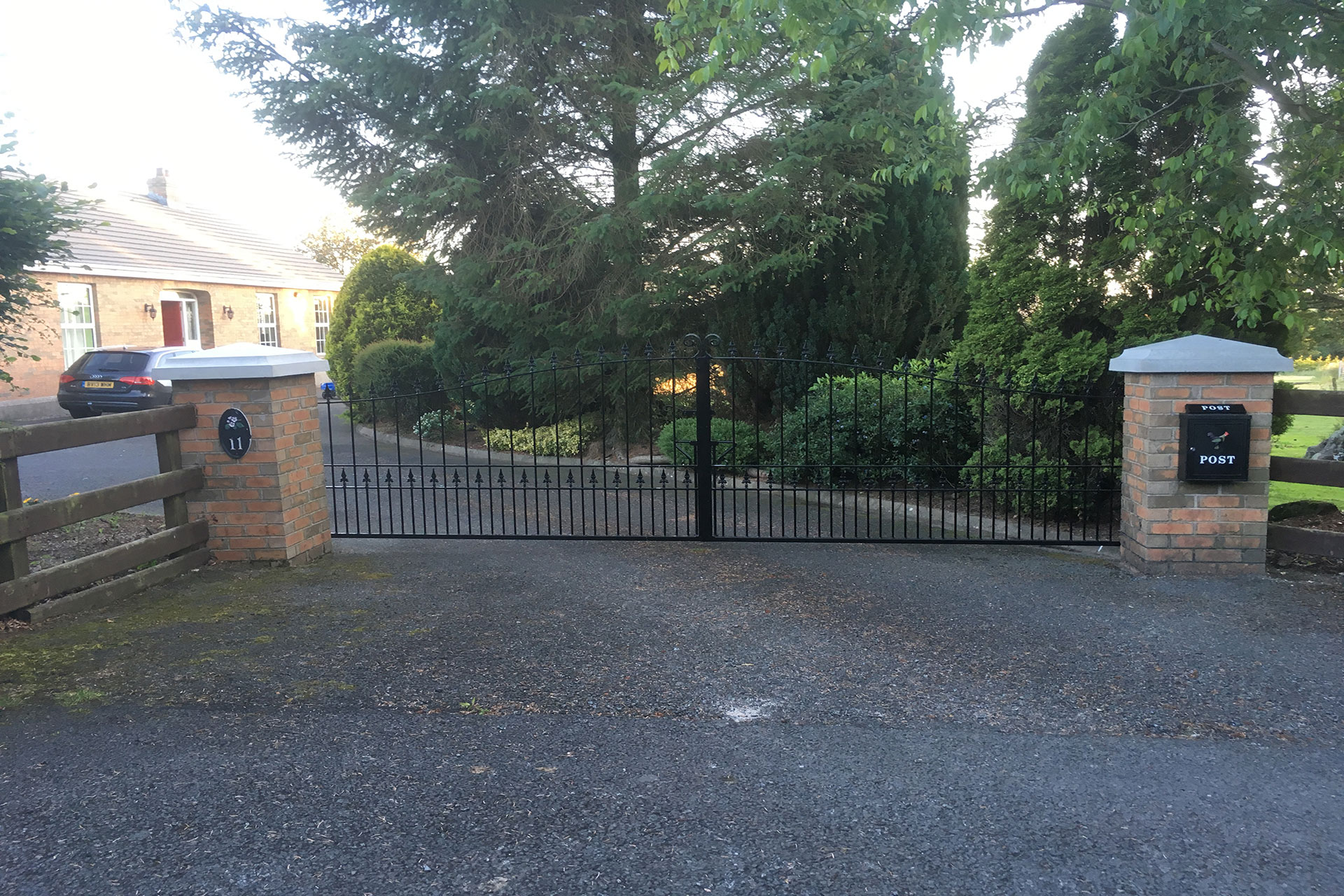

Bishop Pillar Cap
| Width (mm) |
Total Height (mm) |
Base Height (mm) |
|---|---|---|
| 685 | 208 | 70 |
| 1000 | 300 | 100 |
Premium Bishop Pillar Cap
| Bottom Width (mm) |
Middle Width (mm) |
Top Width (mm) |
Height (mm) |
Combination Code |
|---|---|---|---|---|
| 785 | 930 | 1000 | 400 | DCC31 + PC1D |

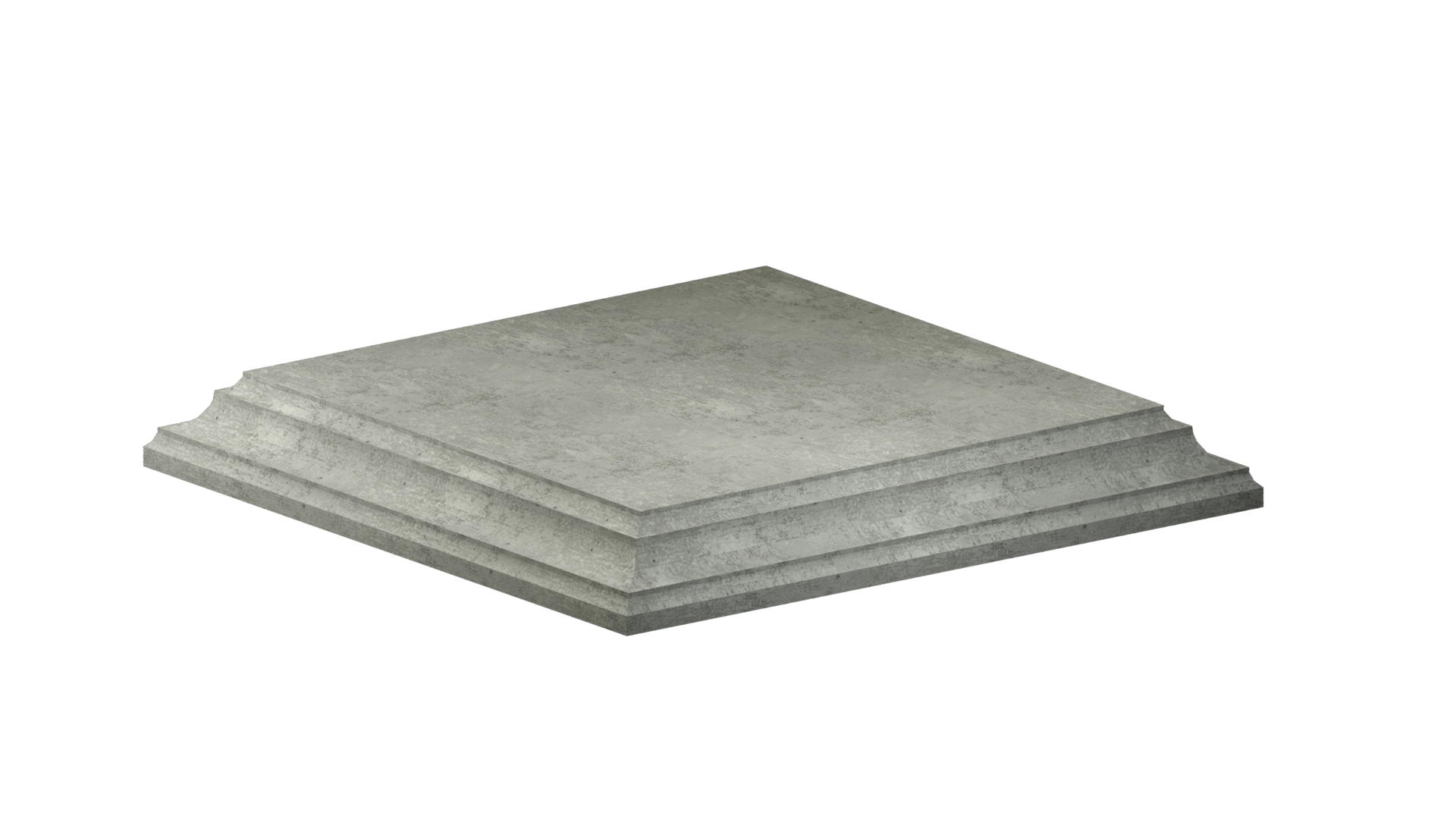

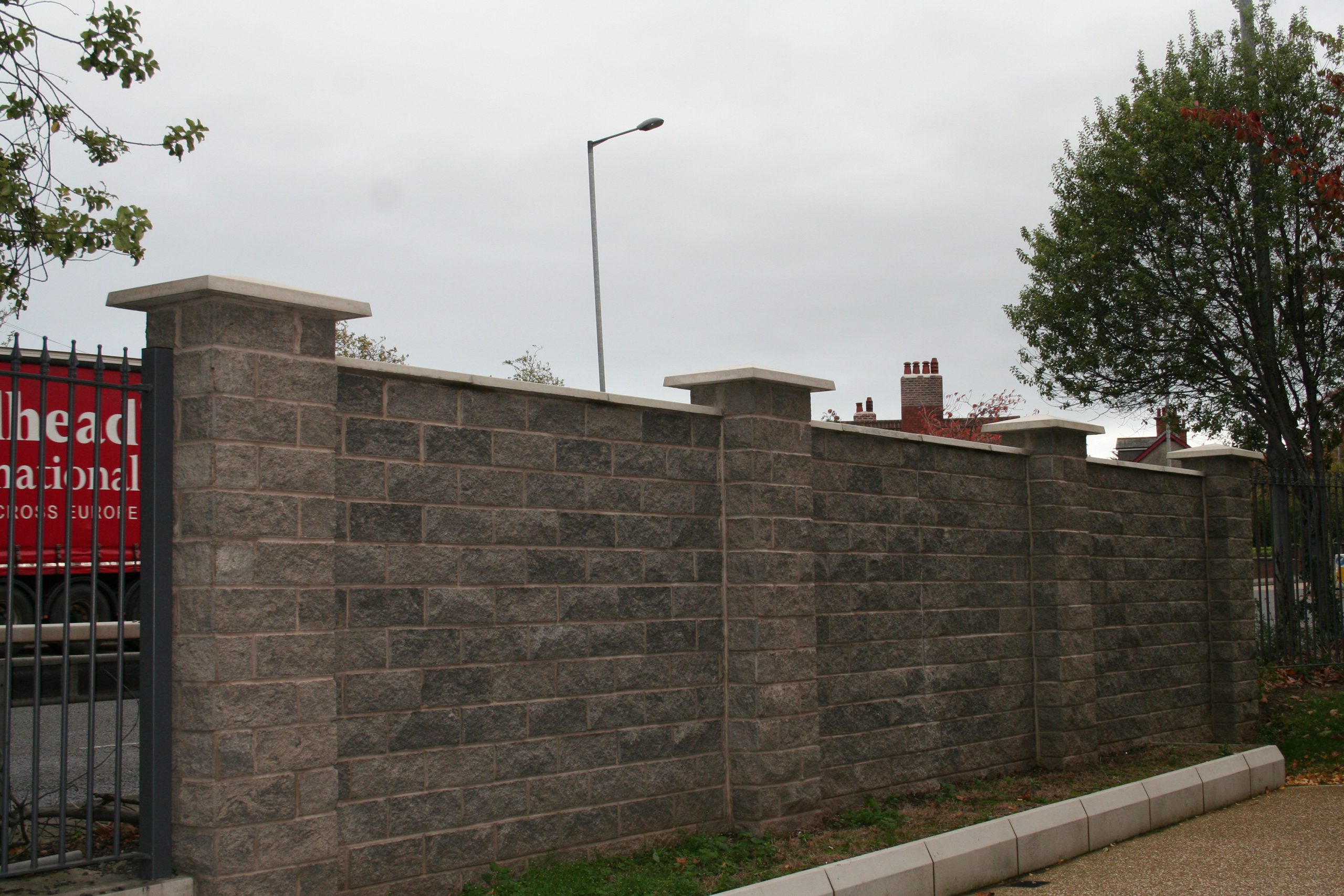

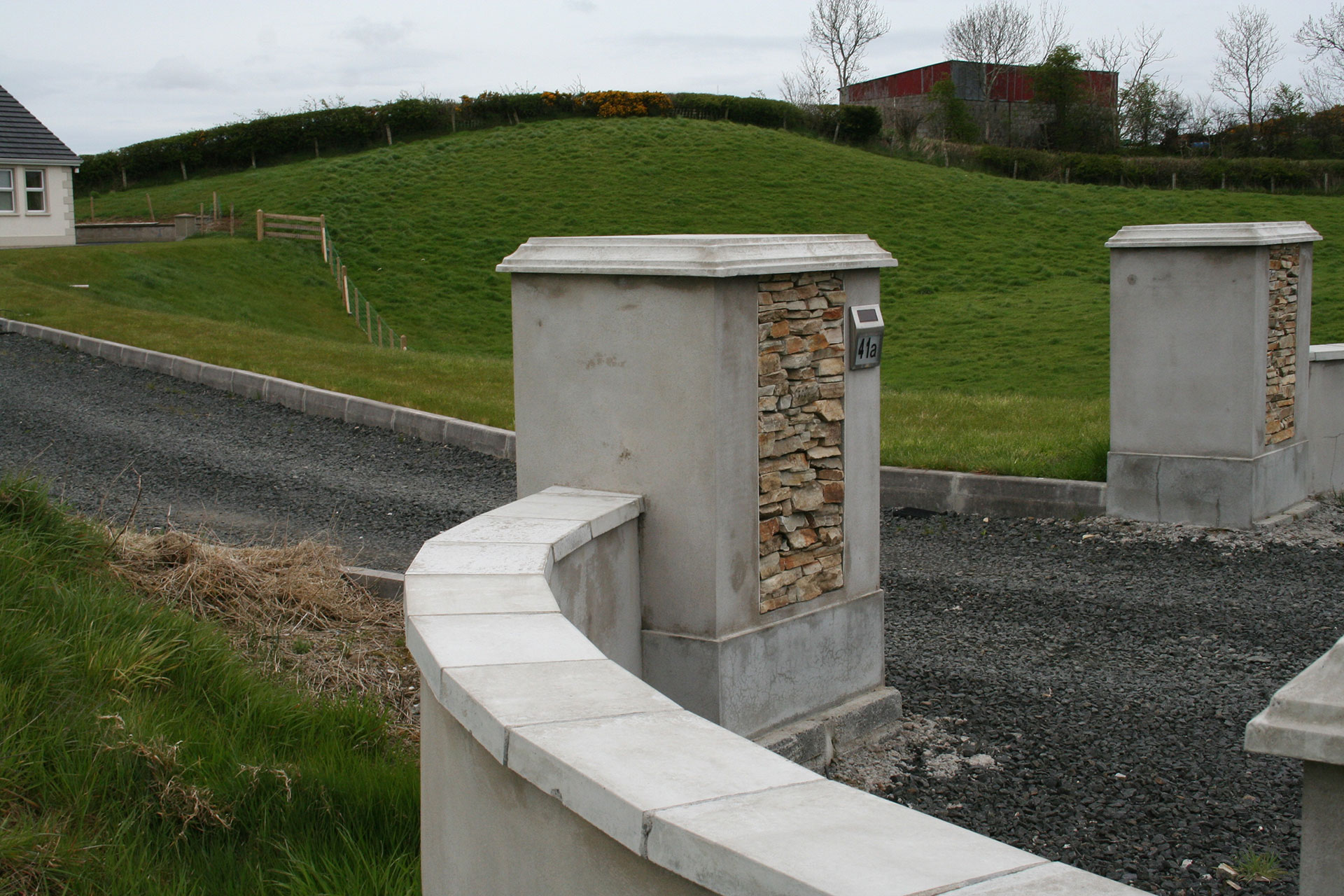

Flat Top Pillar Cap
| Size | Width (mm) |
Height (mm) |
|---|---|---|
| 28” | 705 | 110 |
| 33” | 830 | 110 |
| 37” | 930 | 110 |
Featheredge Pillar Cap
| Size | Height 1 (mm) |
Height 2 (mm) |
Width (mm) |
|---|---|---|---|
| 13” | 51 | 64 | 330 |
| 16” | 64 | 102 | 400 |
| 18” | 51 | 102 | 450 |
| 21” | 44 | 95 | 535 |
| 24” | 51 | 102 | 610 |

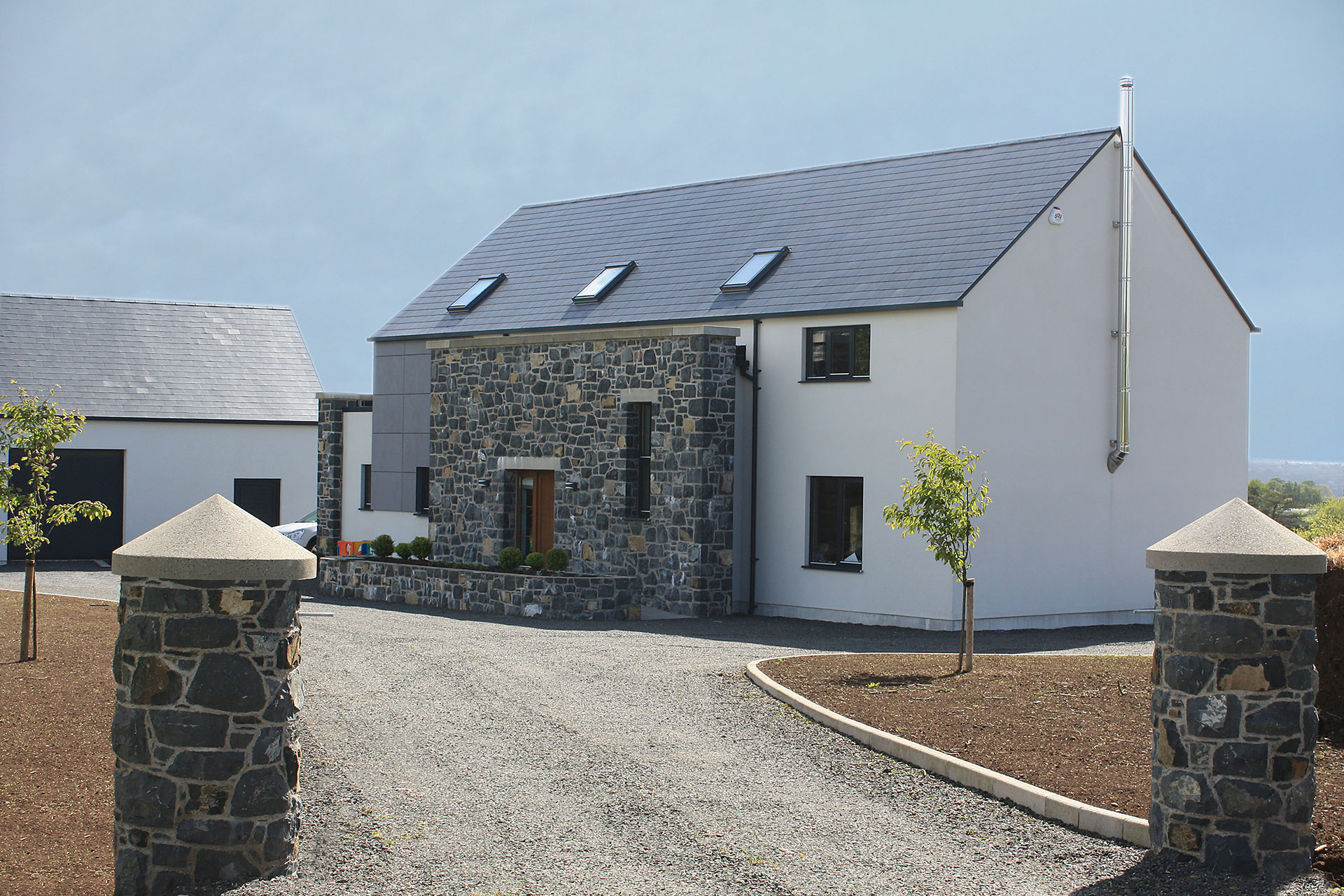

Circular Pillar Cap
| Diameter (mm) |
Total Height (mm) |
Base Height (mm) |
|---|---|---|
| 420 | 200 | 50 |
| 660 | 255 | 75 |
| 950 | 260 | 100 |
-
Features & Specifications
Pillar caps can be custom made to accommodate lamps or balls.
Our bespoke flush pillar caps are made to the exact size of a pillar. They are ideal to prevent the scoring of a car on a narrow driveway.
-
Delivery
For further information regarding Pillar Caps please contact a member of our building sales team on 028 2565 2566, Ext 2. Delivery available throughout the UK & Ireland
