Concrete Kerbs
MenuConcrete Kerbs
We manufacture a range of stylish concrete kerbs including dwarf wall kerbs for both garden and road use.
Kerbs come in different shapes to suit every taste and décor.
For further information regarding Concrete Kerbs Please contact a member of our building Sales Team on 028 2565 2566, Ext 2
Make an Enquiry

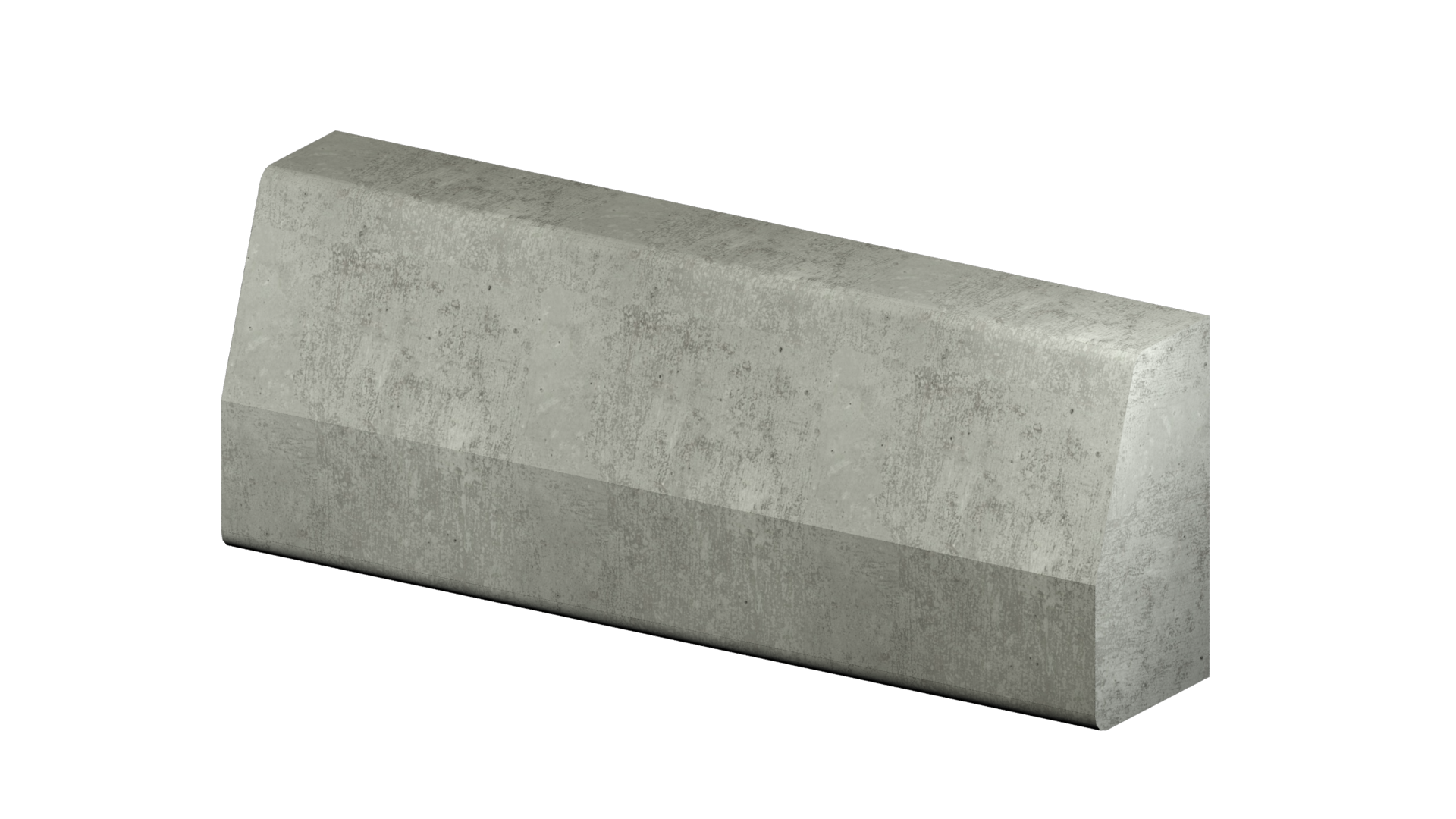

Half Batter Kerb
| Size | Total Height (mm) |
Bottom Width (mm) |
Top Width (mm) |
Base Height (mm) |
Length (mm) |
|---|---|---|---|---|---|
| 6” x 5” | 150 | 125 | 100 | 55 | 915 |
| 8” x 4” | 200 | 100 | 85 | 100 | 915 |

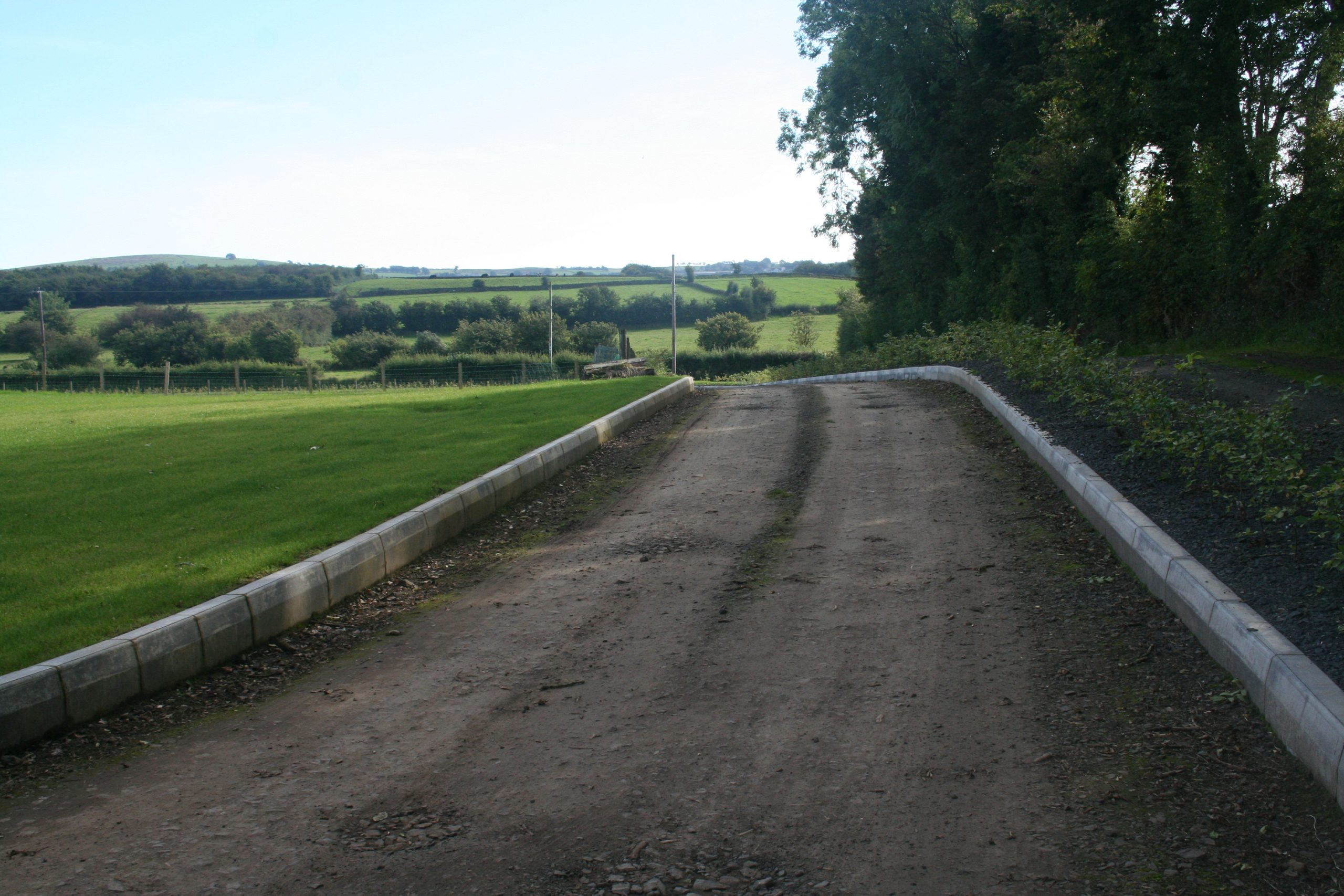

| 10” x 5” | 225 | 125 | 100 | 150 | 915 |
| 10” x 5” Thirds | 225 | 125 | 100 | 150 | 305 |
| 10” x 5” Halves | 255 | 125 | 100 | 150 | 450 |
Bull Nose Kerb
| Size | Height (mm) |
Width (mm) |
Length (mm) |
|---|---|---|---|
| 10” x 5” | 255 | 125 | 915 |
| 6” x 5” | 150 | 125 | 915 |

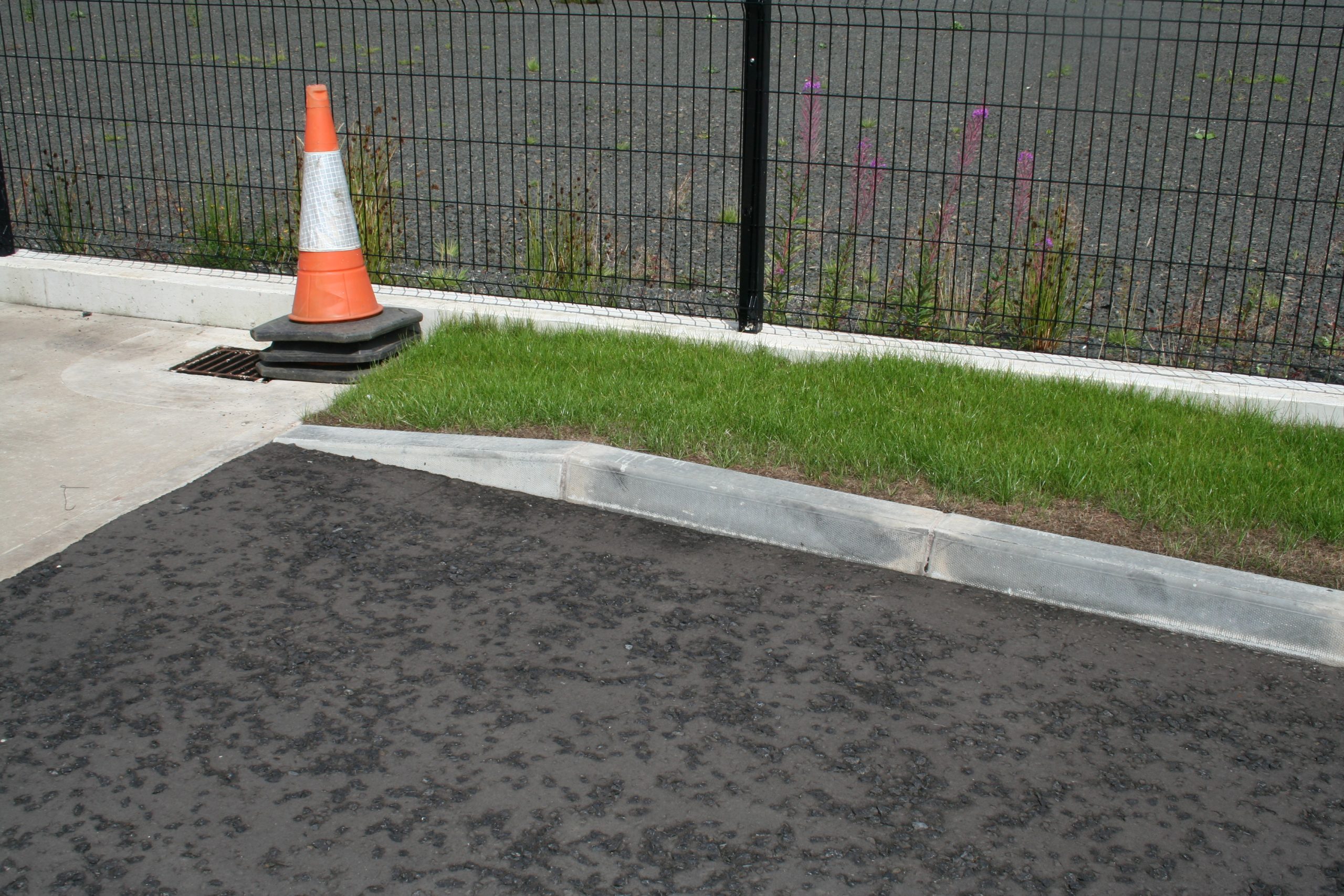

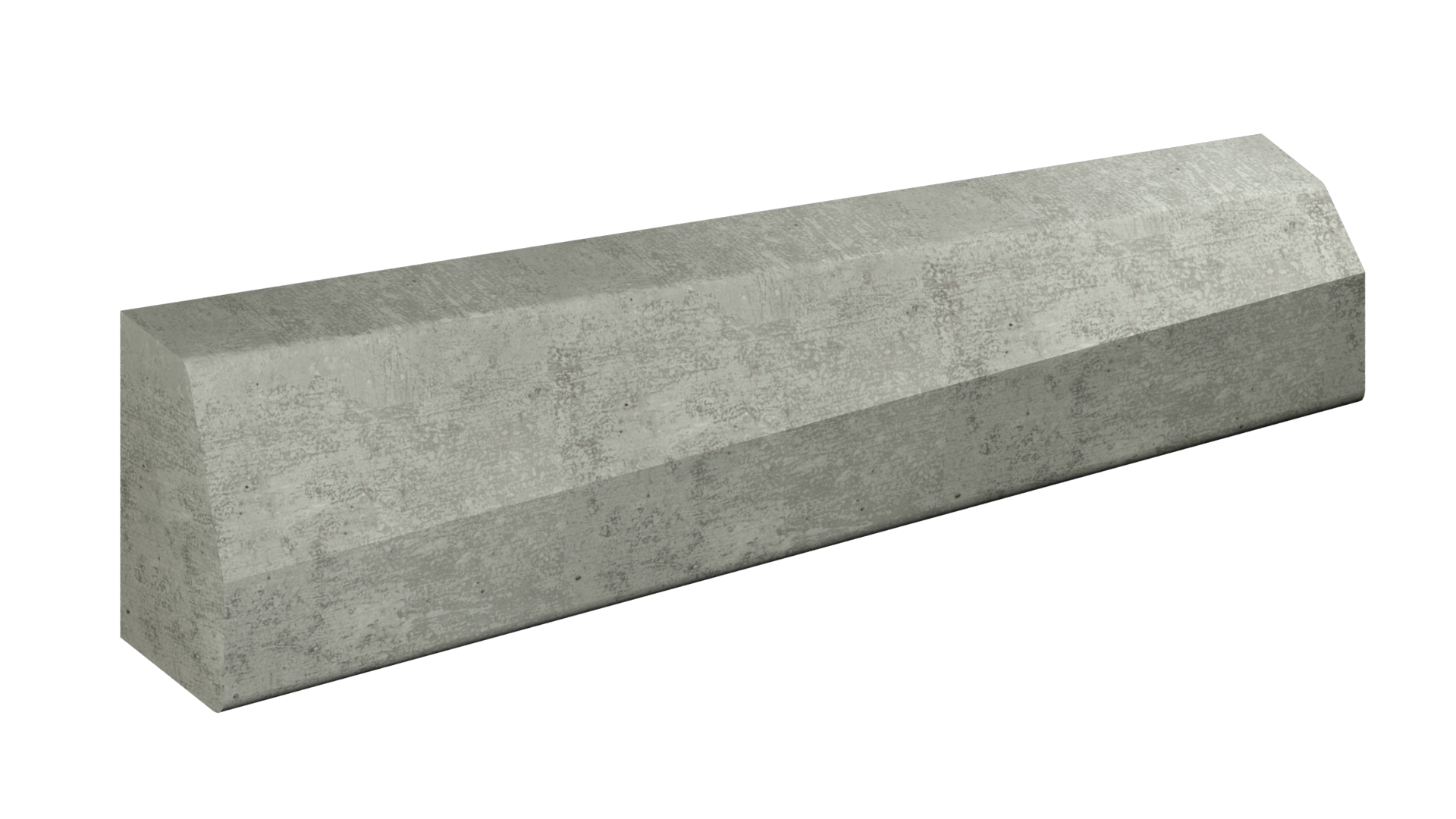

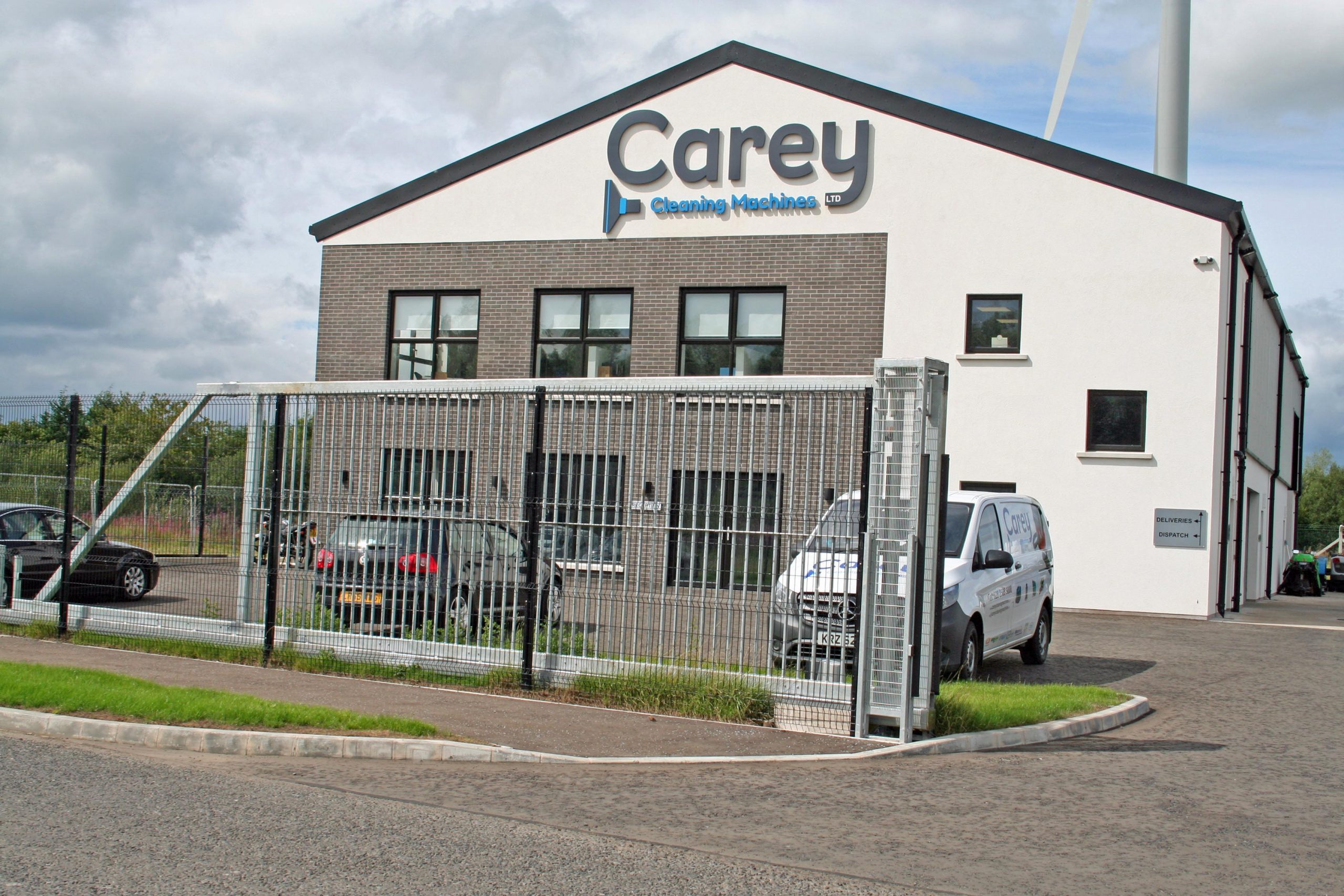

Drop Kerb (Left and Right)
| Total Height (mm) |
Width (mm) |
Base Height (mm) |
Length (mm) |
|---|---|---|---|
| 255 | 125 | 150 | 915 |

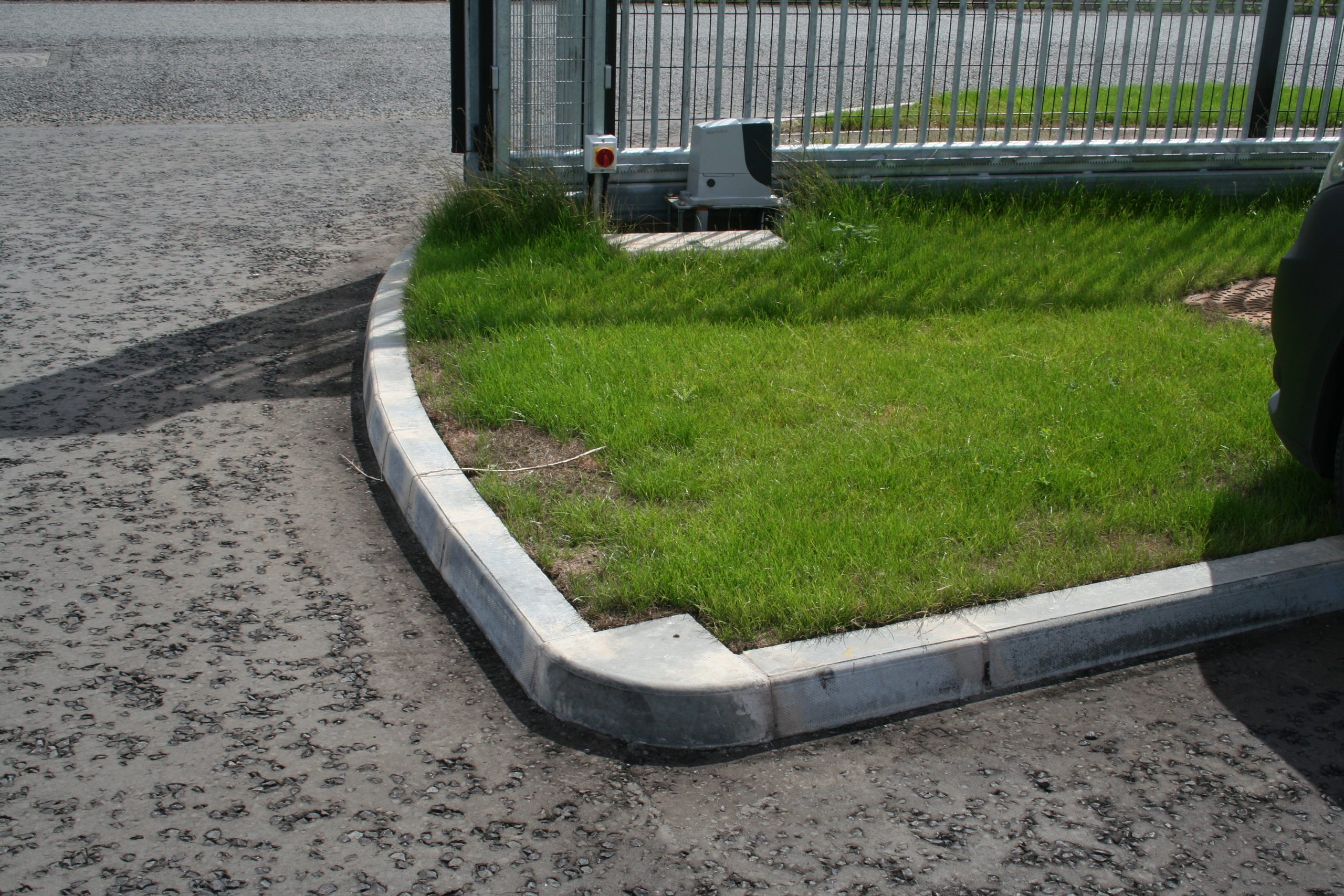

Quadrant Kerb (Road) to suit 10" x 5"
| Size | Total Height (mm) |
Width (mm) |
|---|---|---|
| 255 | 125 |

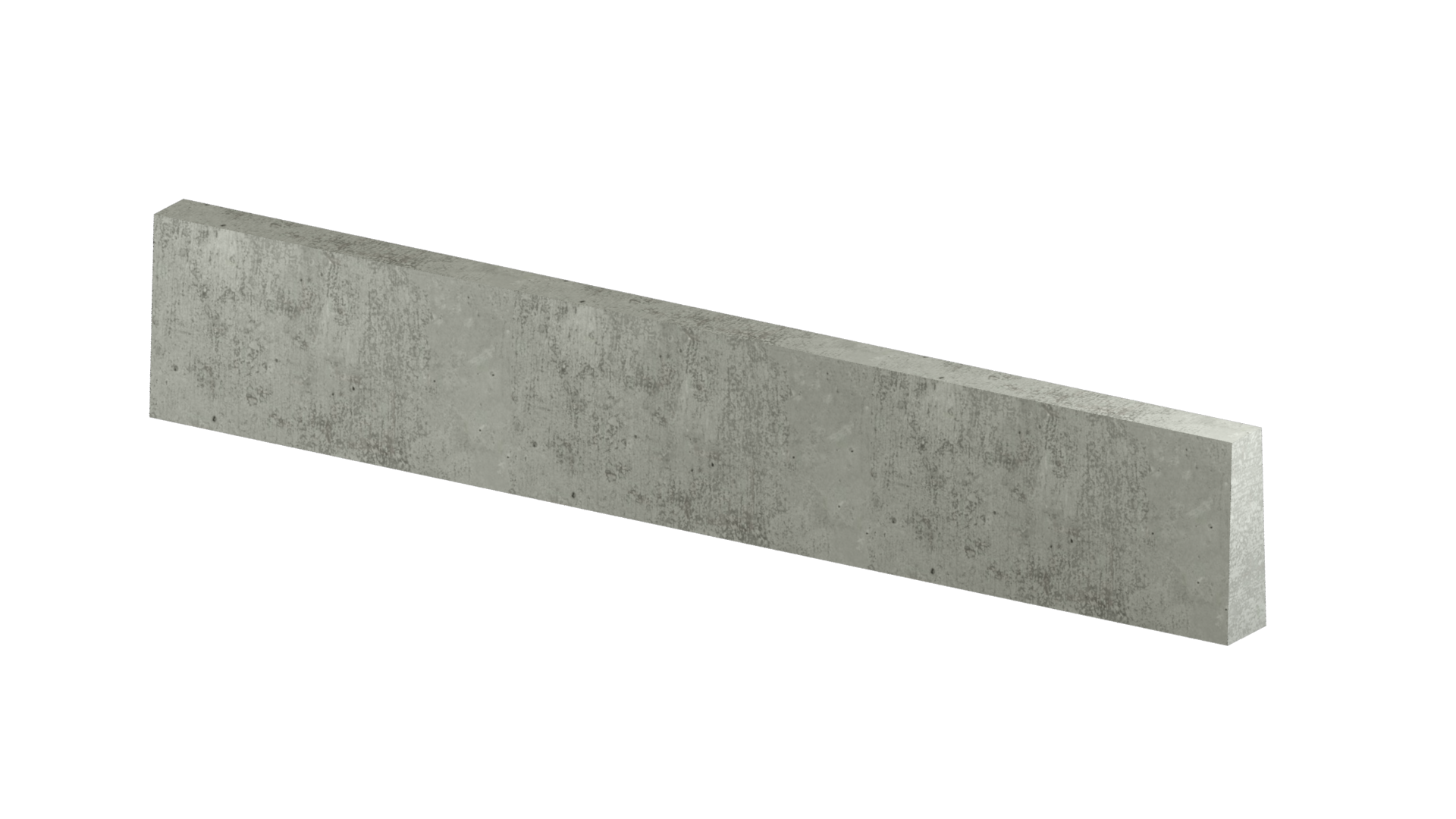

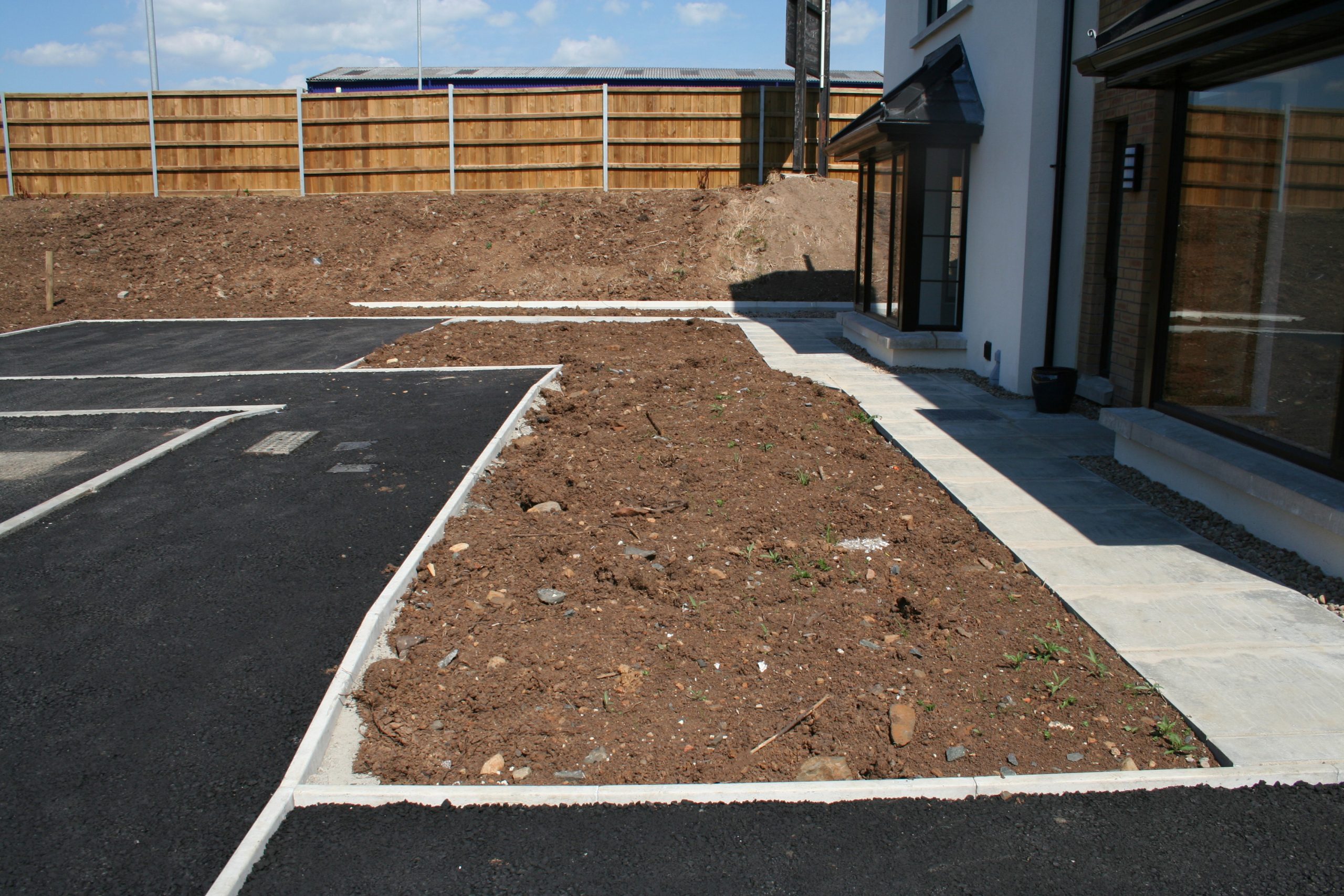

Flat Top Kerb
| Size | Total Height (mm) |
Bottom Width (mm) |
Top Width (mm) |
Length (mm) |
|---|---|---|---|---|
| 6" x 2" | 150 | 150 | 43 | 915 |

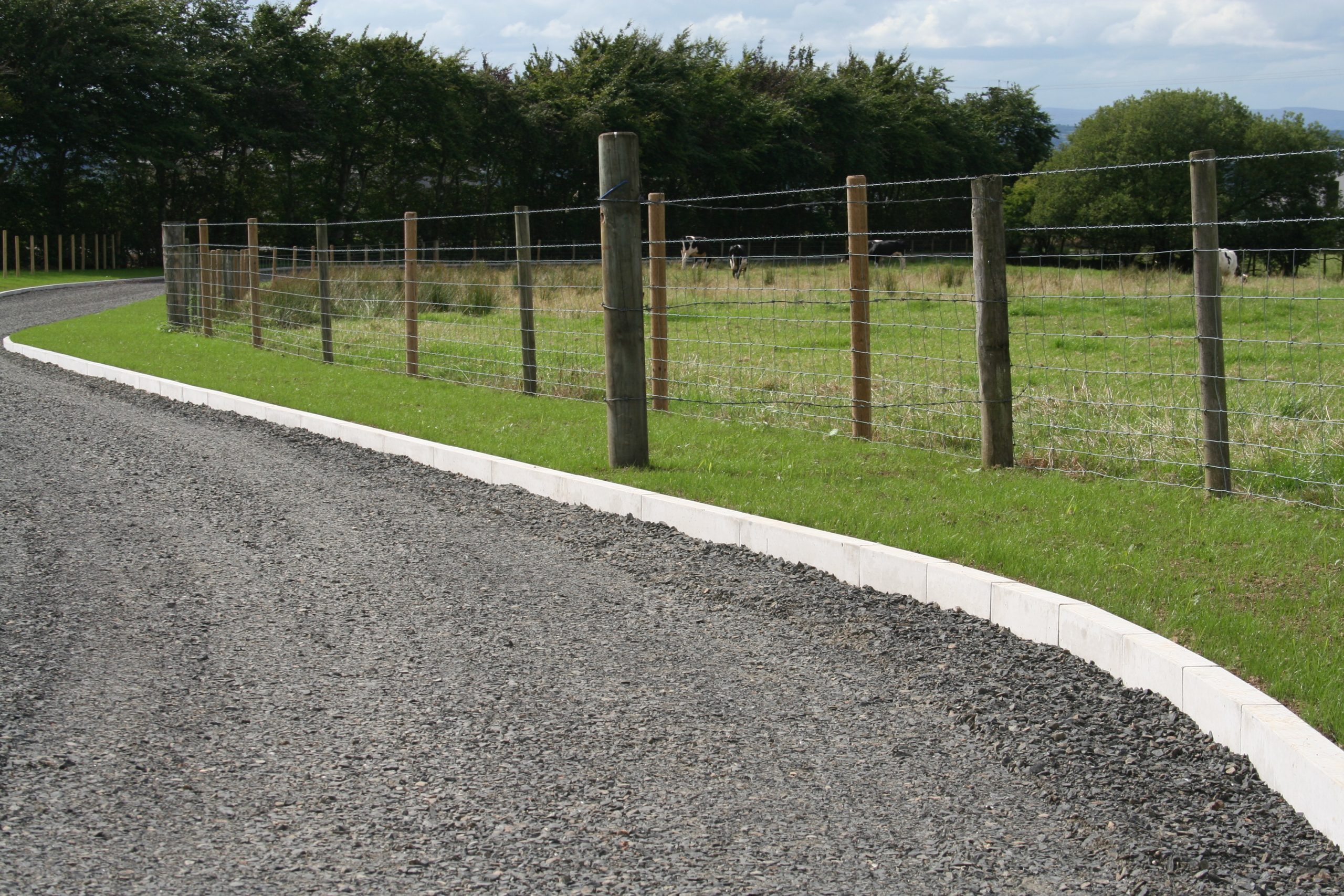

| 6" x 3" | 150 | 75 | 70 | 915 |
| 9" x 2" | 225 | 52 | 50 | 915 |

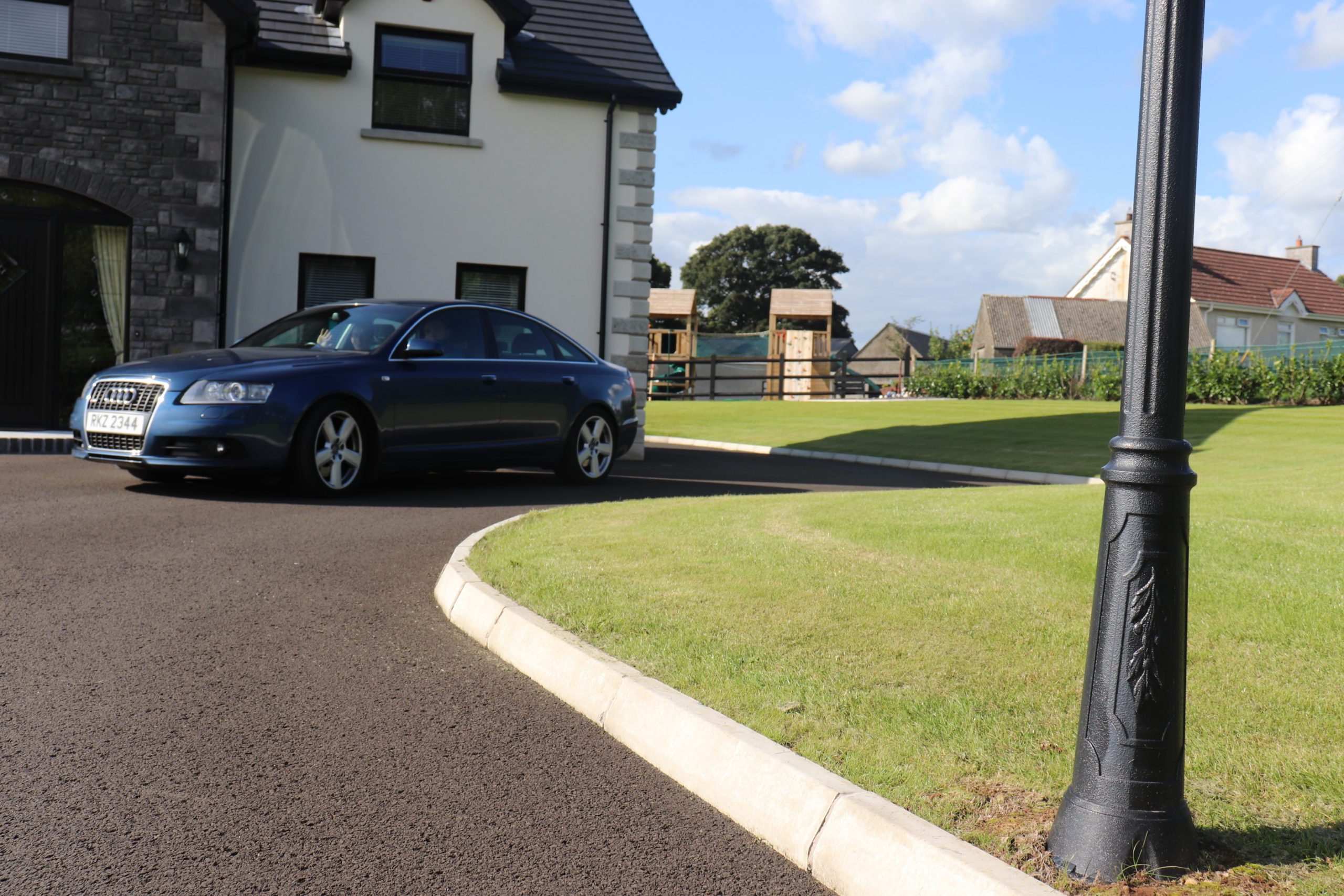

Splayed Kerb
| Size | Height (mm) |
Bottom Width (mm) |
Top Width (mm) |
Base Height (mm) |
Length (mm) |
|---|---|---|---|---|---|

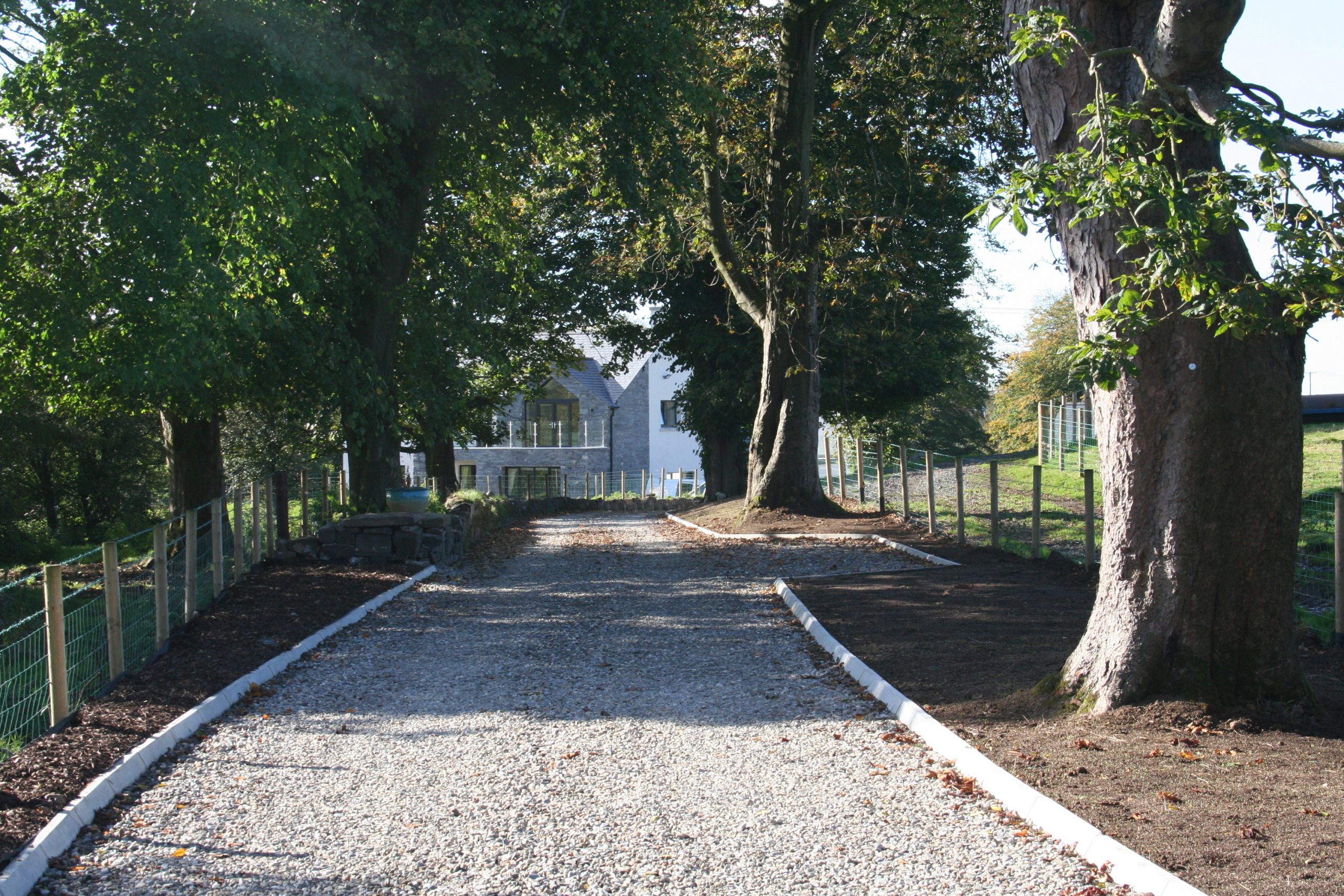

| 6" x 3" | 150 | 75 | 40 | 70 | 915 |
| 7" x 4" | 175 | 100 | 55 | 80 | 915 |

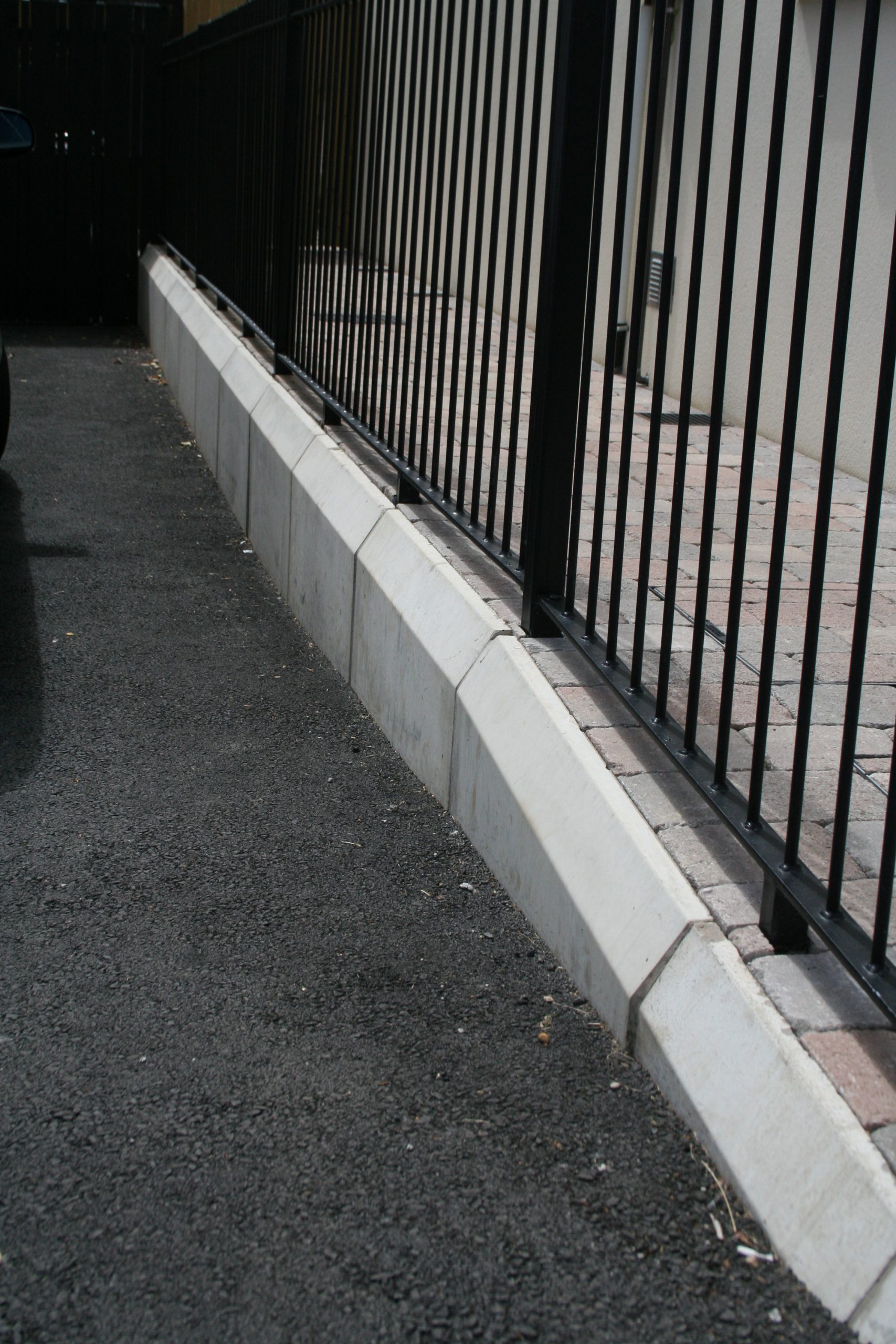

Dwarf Wall
| Size | Total Height (mm) |
Bottom Width (mm) |
Top Width (mm) |
Base Height (mm) |
Length (mm) |
|---|---|---|---|---|---|
| 10" | 255 | 80 | 25 | 160 | 915 |
| 15" | 380 | 80 | 25 | 285 | 915 |
| 18" | 450 | 80 | 25 | 355 | 915 |
| 24" | 600 | 80 | 25 | 508 | 915 |
| 30" | 760 | 90 | 30 | 640 | 915 |
-
Features & Specifications
Our Prestressed Road Kerbs are designed for heavy duty use such as road or driveway edging
Garden Kerbs are not suitable for driving over with a vehicle
9”x 2” Flat Top Kerbs can be used to cast an in-situ step or for domestic use
Our Dwarf Wall range has been designed to be utilised with one another*, resulting in a perfectly smooth finish when kerbing an inclined slope. *Not including 30″ Dwarf Wall
Dwarf walls can retain a small amount of earth
-
Delivery
For further information regarding Kerbs, please contact a member of our Building sales team on 028 2565 2566, Ext 2. Delivery available throughout the UK & Ireland.
