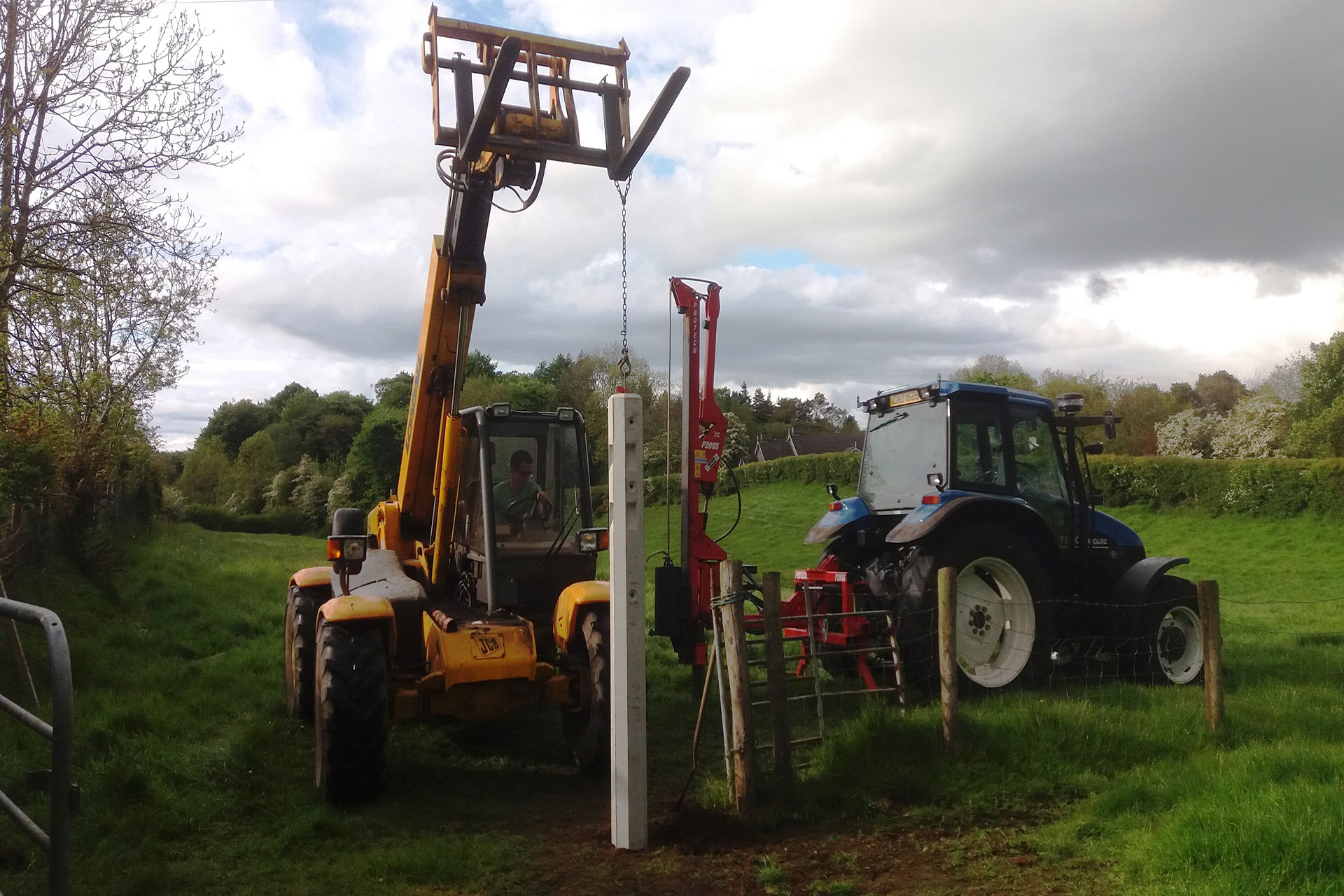

The video below provides a guide of installation using mechanic equipment to drive the Ox Strain Posts into the ground. This video includes a top hat placed on top of the Ox Strain Post to protect the post when driving it in.
Ox Strain Posts
Ox Strain Posts
Newly developed reinforced concrete Ox Strain Posts are octagonal shaped strainer posts ideal for agricultural fencing. Regardless of ground conditions, Ox Strain posts are designed to be used alongside our new Ox Post to create a durable, strong, maintenance free fencing solution. Combined Ox Strain and Ox Post create an extremely aesthetically pleasing finish when used on the same fencing project.
Moore Concrete’s OxFence are also approved under the Targeted Agricultural Modernisation Scheme (TAMS III) in the Republic of Ireland
Ox Strain Posts are Registered Trade Mark with a EU Registered Design No. 004379535-0001
Concrete Strainers
High quality fencing is important when it comes to delivering high levels of grassland management and utilisation. Our Ox Strain Posts can be used in all conditions and are extremely durable.
For further information regarding Ox Strain Posts Please contact a member of our agriculture Sales Team on 028 2565 2566, Ext 1
Make an Enquiry-
Features & Specifications
Reinforced concrete provides durability and strength, offering a 50 year design life

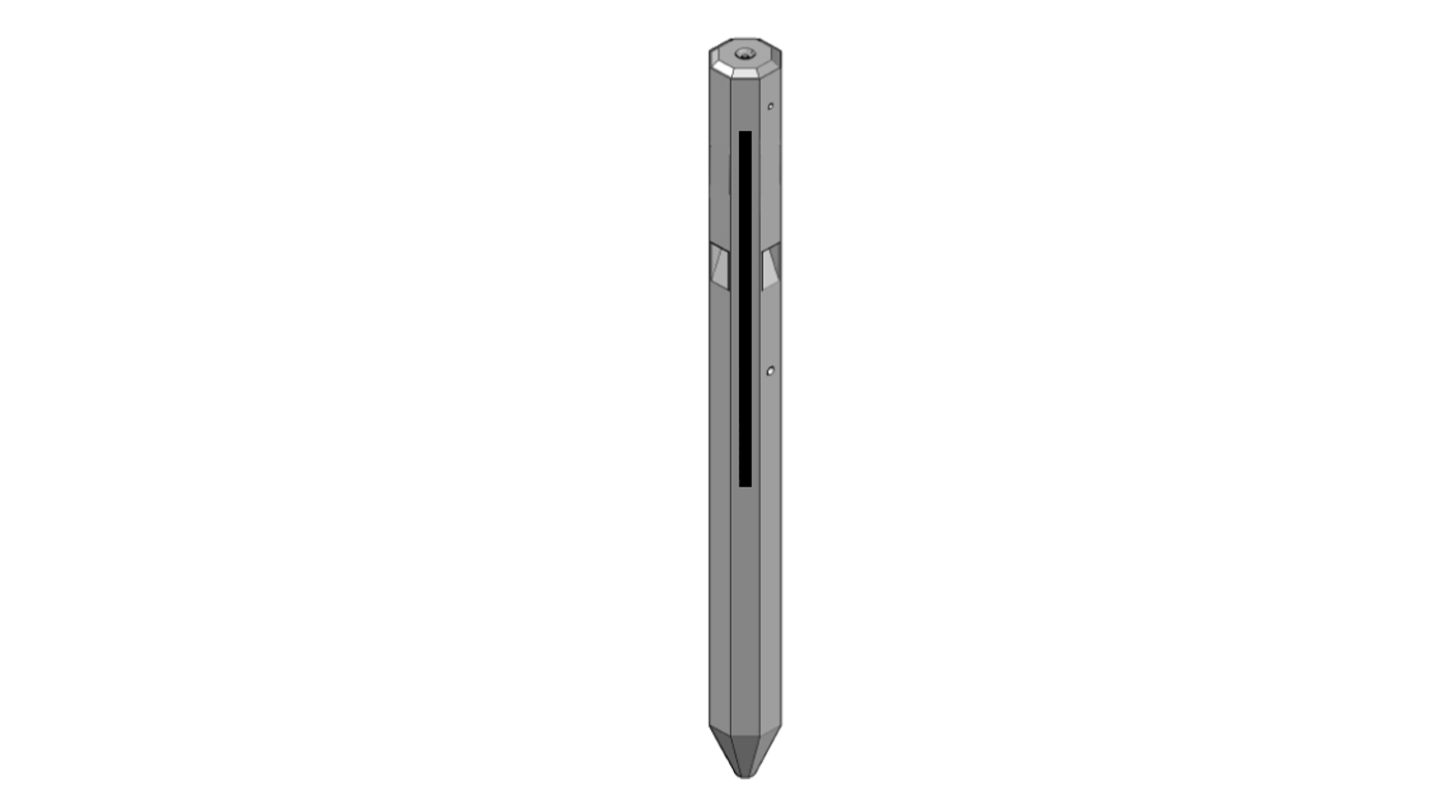

Recycled plastic fixing strip cast in one face of both the Ox Strain & Ox Post allowing wire to be stapled directly to the post

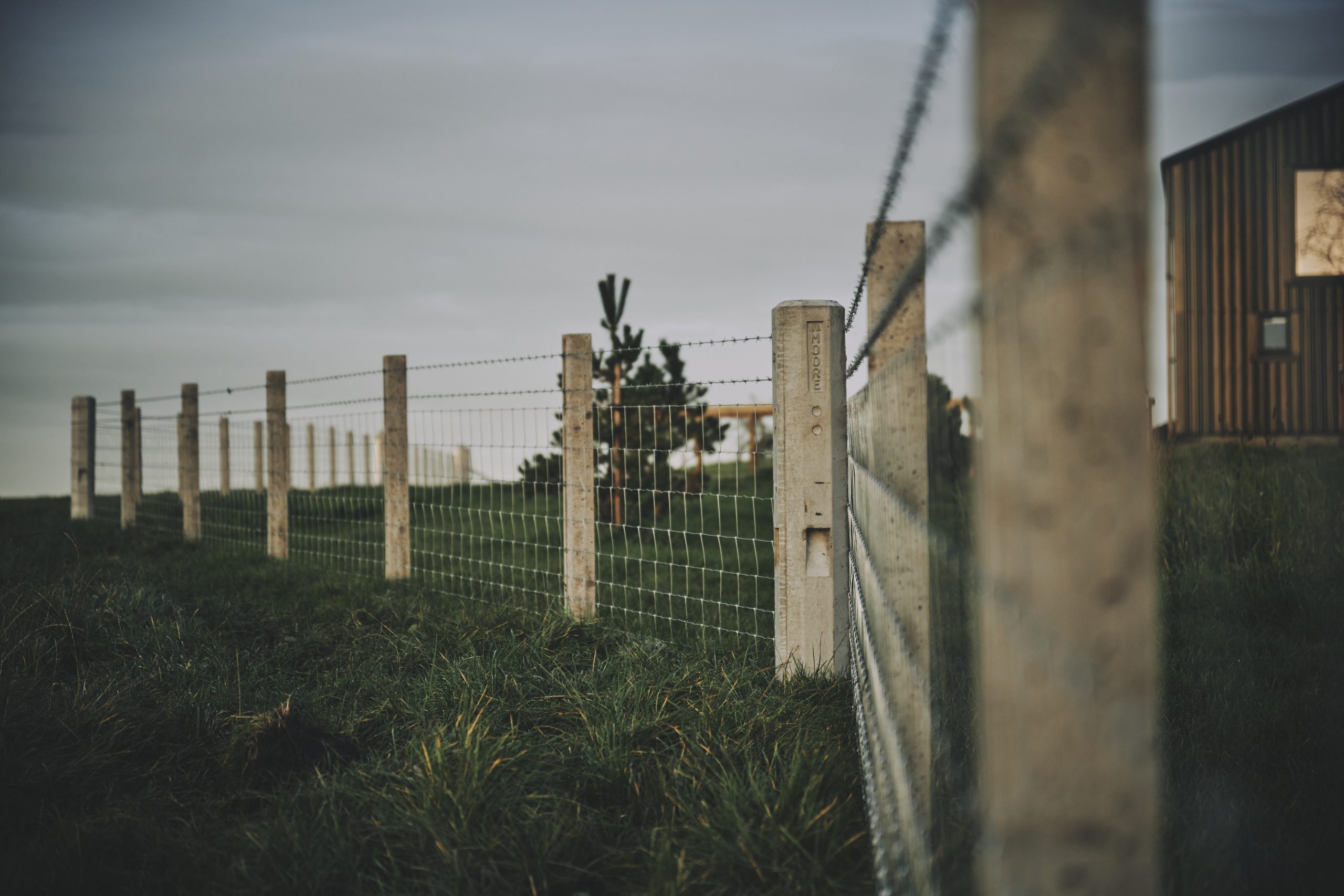

Ox Strain are designed to be used alongside our new Ox Post to create a durable, strong, maintenance free fencing solution. Combined Ox Strain and Ox Post create an extremely aesthetically pleasing finish when used on the same fencing project
Ox Strain’s octagonal design creates the optimum post shape, allowing wire to be easily wrapped around the post and making the post easier to handle and transport
Unaffected by ground conditions

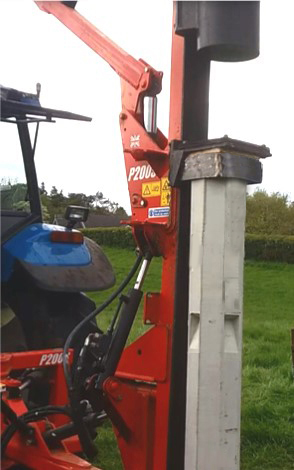

Each Ox Strain Post is identical with a pointed end, making them easy to install. A specially designed top hat allows installation using most standard post drivers
Octagonal shape make the Ox Strain Post’s easier to grip when using machinery to drive into the ground reducing twisting
Once installed the octagonal shape prevents the post from turning and losing wire tension
M16 sockets are cast into the top of the Ox Strain Posts, for ease of handling

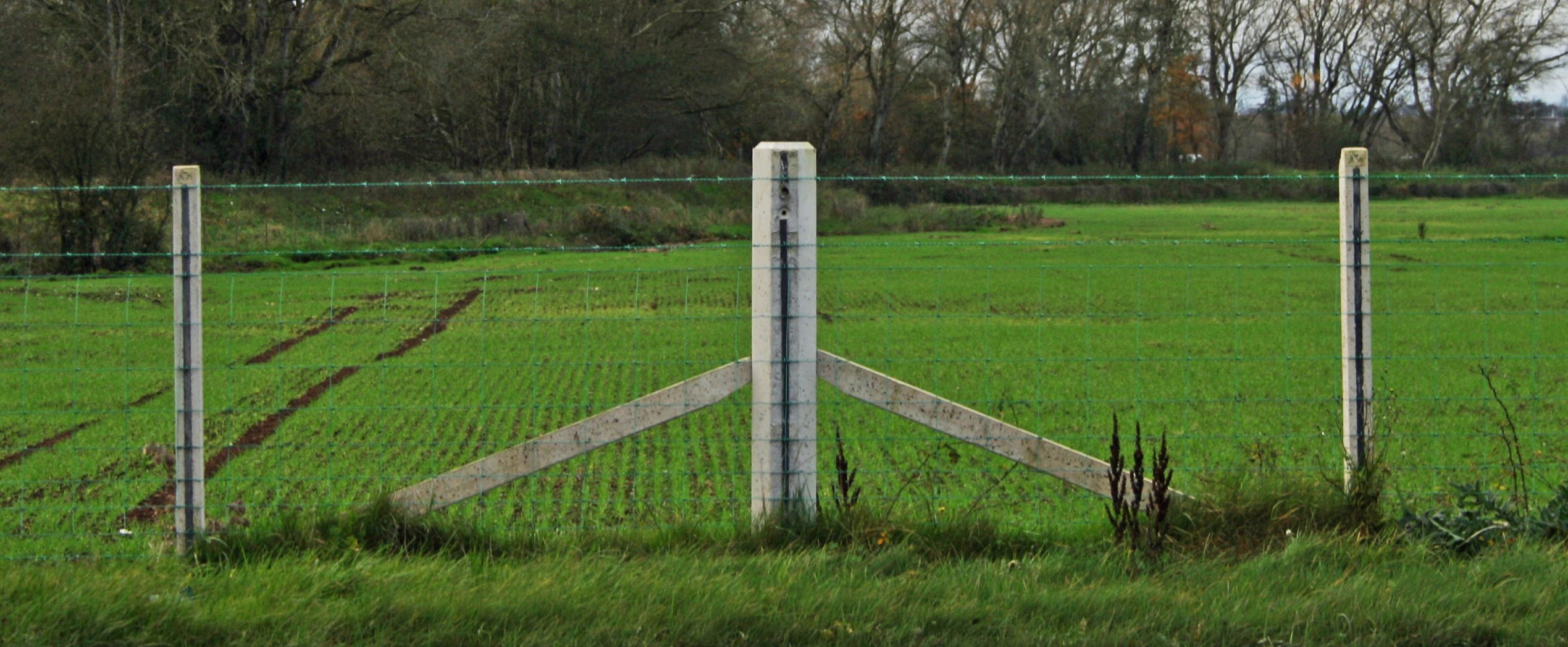

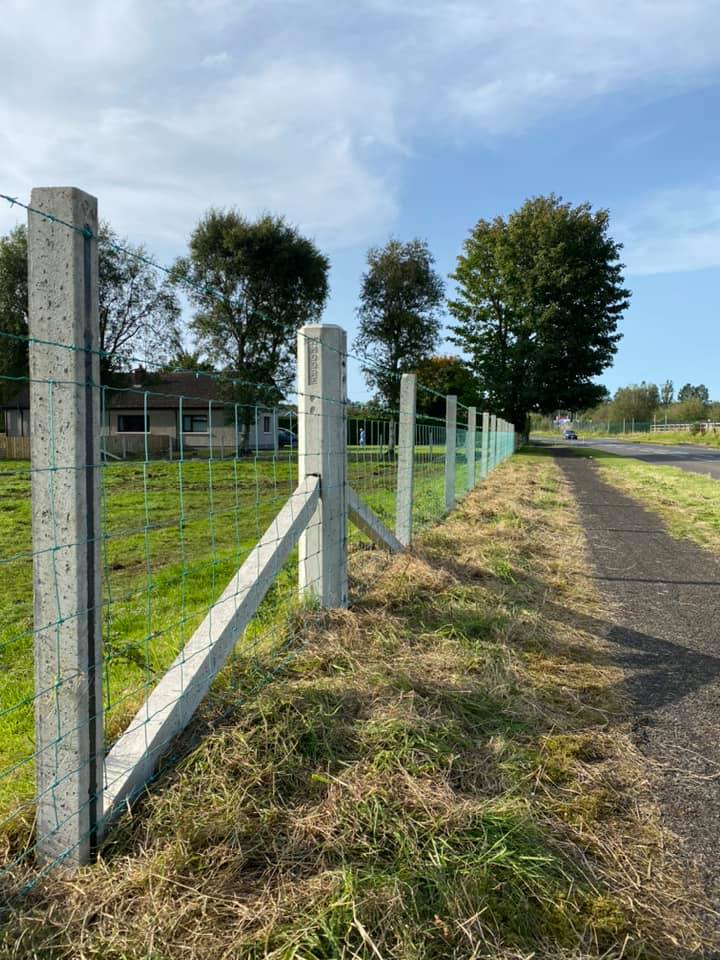

Notches for struts are cast into three sides allowing flexibility for strut placement
Range of lengths for various ground conditions including 3050mm (10′), 2590mm (8’6″), 2135mm (7′)
Ox Strain Post is Registered Trade Mark with a EU Registered Design No. 004379535-0001
Ox Strain Post & Strut eligible for Environmental Farming Scheme (EFS) NI funding.

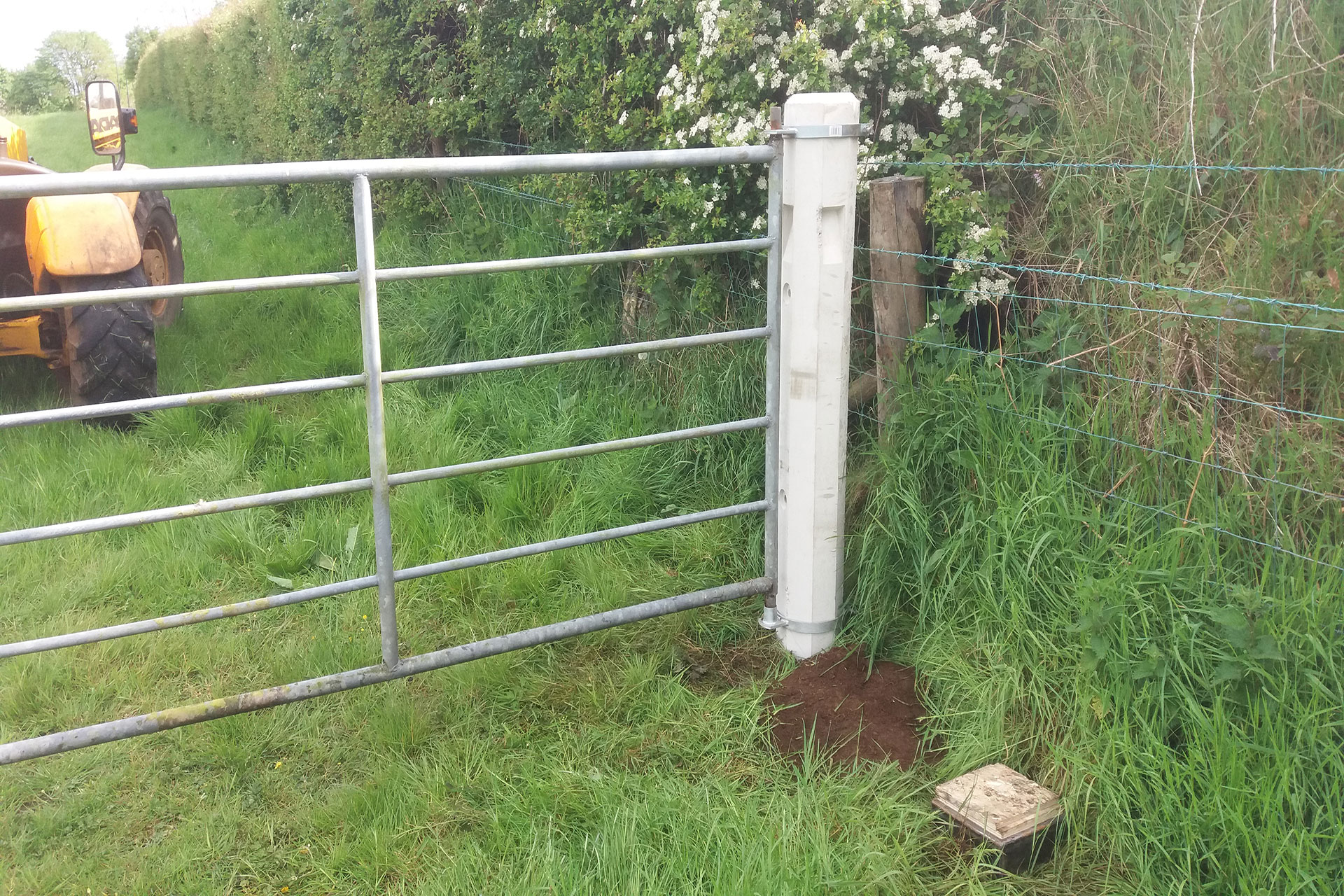

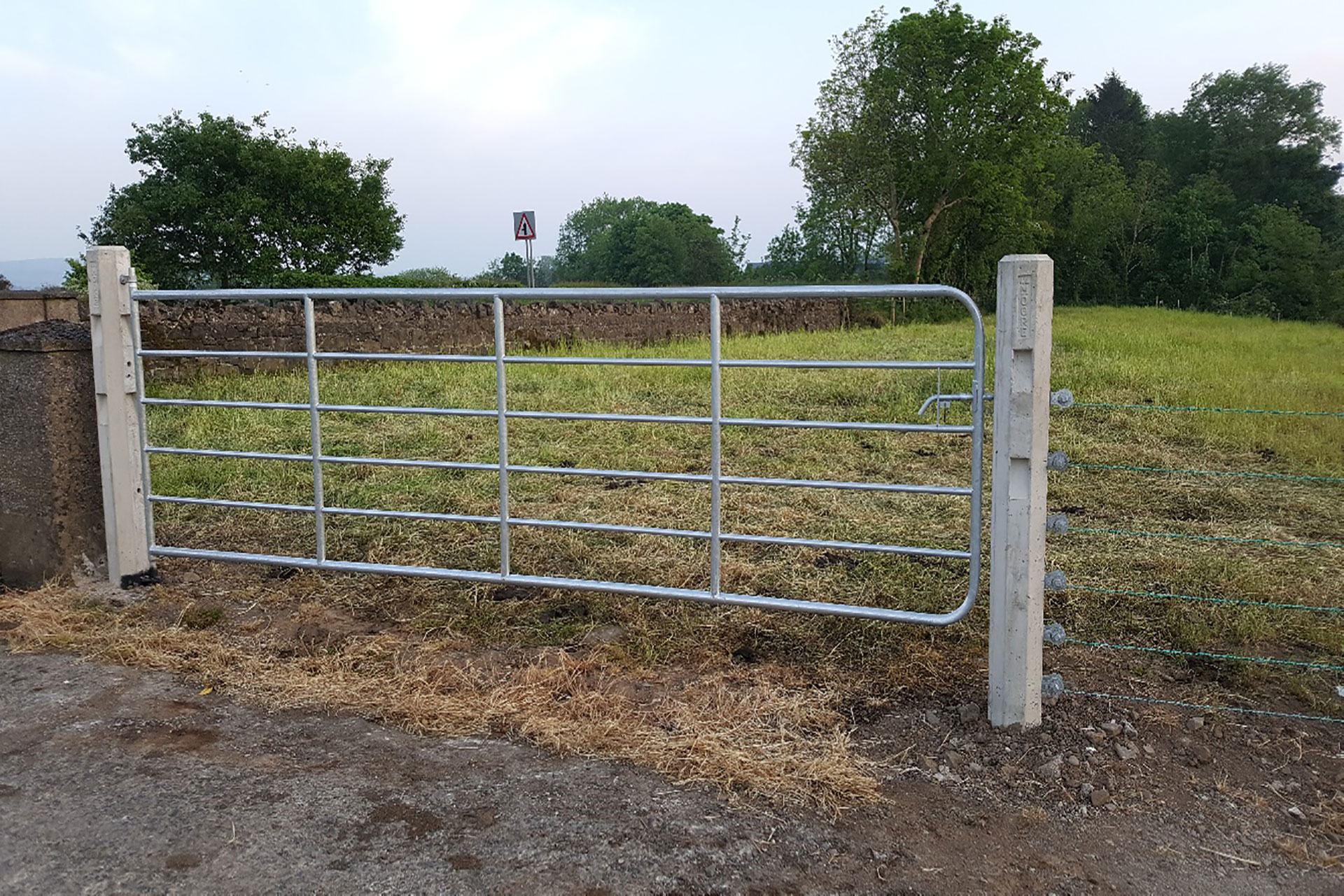

Posts can be used to hang gates
-
Product Dimensions
Ox Strain Posts Dimensions
Product Type Length Base Top Ox Strain Post 3050 (10') 200 x 200
(8” x 8”)200 x 200
(8” x 8”)2590 (8’6”) 200 x 200
(8” x 8”)200 x 200
(8” x 8”)2135 (7’) 200 x 200
(8” x 8”)200 x 200
(8” x 8”)Ox Strain Struts 1830 (6’) 100 x 75
(4” x 3”)100 x 75
(4” x 3”)Ox Post 1830 (6’) 100 x 75
(4” x 3”)100 x 75
(7” x 4”)Gate Post 7” 2135 (7’) 178 x 178
(7” x 7”)178 x 178
(7” x 7”)Gate Post 8” 2135 (7’) 200 x 200
(8” x 8”)200 x 200
(8” x 8”)Country Gate Post 2285 (7’6”) 384 x 384
(15” x 15”)254 x 254
(10” x 10”)Moore Concrete are proud to be one of the UK’s leading manufacturers of high quality precast building products. Our Ox Strain Posts come in various sizes and types in order to meet your desired needs.
-
Delivery & Install
Installation
For information on Top Hats and any other queries on Ox Strain Posts please call a member of our Agricultural Team for further details on 028 2565 2566 Ext 1.
Reinforced concrete provides durability and strength, offering a 50 year design life
Recycled plastic fixing strip cast in one face of both the Ox Strain & Ox Post allowing wire to be stapled directly to the post
Ox Strain are designed to be used alongside our new Ox Post to create a durable, strong, maintenance free fencing solution. Combined Ox Strain and Ox Post create an extremely aesthetically pleasing finish when used on the same fencing project
Ox Strain’s octagonal design creates the optimum post shape, allowing wire to be easily wrapped around the post and making the post easier to handle and transport
Unaffected by ground conditions
Each Ox Strain Post is identical with a pointed end, making them easy to install. A specially designed top hat allows installation using most standard post drivers
Octagonal shape make the Ox Strain Post’s easier to grip when using machinery to drive into the ground reducing twisting
Once installed the octagonal shape prevents the post from turning and losing wire tension
M16 sockets are cast into the top of the Ox Strain Posts, for ease of handling
Notches for struts are cast into three sides allowing flexibility for strut placement
Range of lengths for various ground conditions including 3050mm (10′), 2590mm (8’6″), 2135mm (7′)
Ox Strain Post is Registered Trade Mark with a EU Registered Design No. 004379535-0001
Ox Strain Post & Strut eligible for Environmental Farming Scheme (EFS) NI funding.
Posts can be used to hang gates
Ox Strain Posts Dimensions
| Product Type | Length | Base | Top |
|---|---|---|---|
| Ox Strain Post | 3050 (10') | 200 x 200 (8” x 8”) |
200 x 200 (8” x 8”) |
| 2590 (8’6”) | 200 x 200 (8” x 8”) |
200 x 200 (8” x 8”) |
|
| 2135 (7’) | 200 x 200 (8” x 8”) |
200 x 200 (8” x 8”) |
|
| Ox Strain Struts | 1830 (6’) | 100 x 75 (4” x 3”) |
100 x 75 (4” x 3”) |
| Ox Post | 1830 (6’) | 100 x 75 (4” x 3”) |
100 x 75 (7” x 4”) |
| Gate Post 7” | 2135 (7’) | 178 x 178 (7” x 7”) |
178 x 178 (7” x 7”) |
| Gate Post 8” | 2135 (7’) | 200 x 200 (8” x 8”) |
200 x 200 (8” x 8”) |
| Country Gate Post | 2285 (7’6”) | 384 x 384 (15” x 15”) |
254 x 254 (10” x 10”) |
Moore Concrete are proud to be one of the UK’s leading manufacturers of high quality precast building products. Our Ox Strain Posts come in various sizes and types in order to meet your desired needs.
Installation
The video below provides a guide of installation using mechanic equipment to drive the Ox Strain Posts into the ground. This video includes a top hat placed on top of the Ox Strain Post to protect the post when driving it in.
For information on Top Hats and any other queries on Ox Strain Posts please call a member of our Agricultural Team for further details on 028 2565 2566 Ext 1.
