The freestanding Concrete Bunker Walls are designed to minimise the hassle of storing bulk materials in various industries including agriculture, horticulture, recycling, woodchip and biomass.

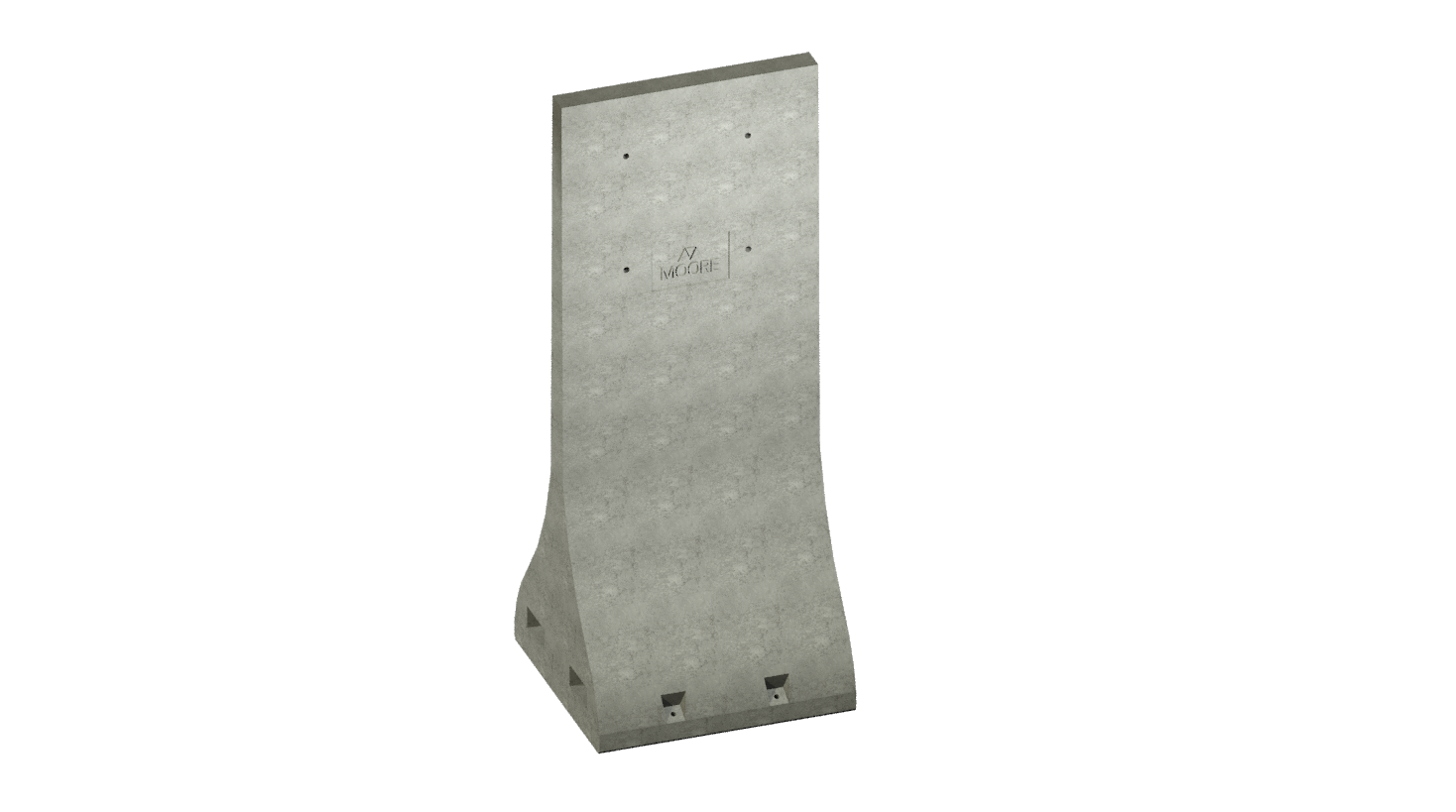

The unique curved shape has been developed to allow the free flow of material to the floor with a 100mm straight portion at the bottom edge to aid the removal of material from the bay.
Moore Concrete’s Bunker Walls are also approved under the Targeted Agricultural Modernisation Scheme (TAMS III) in the Republic of Ireland.
Concrete Bay Dividers

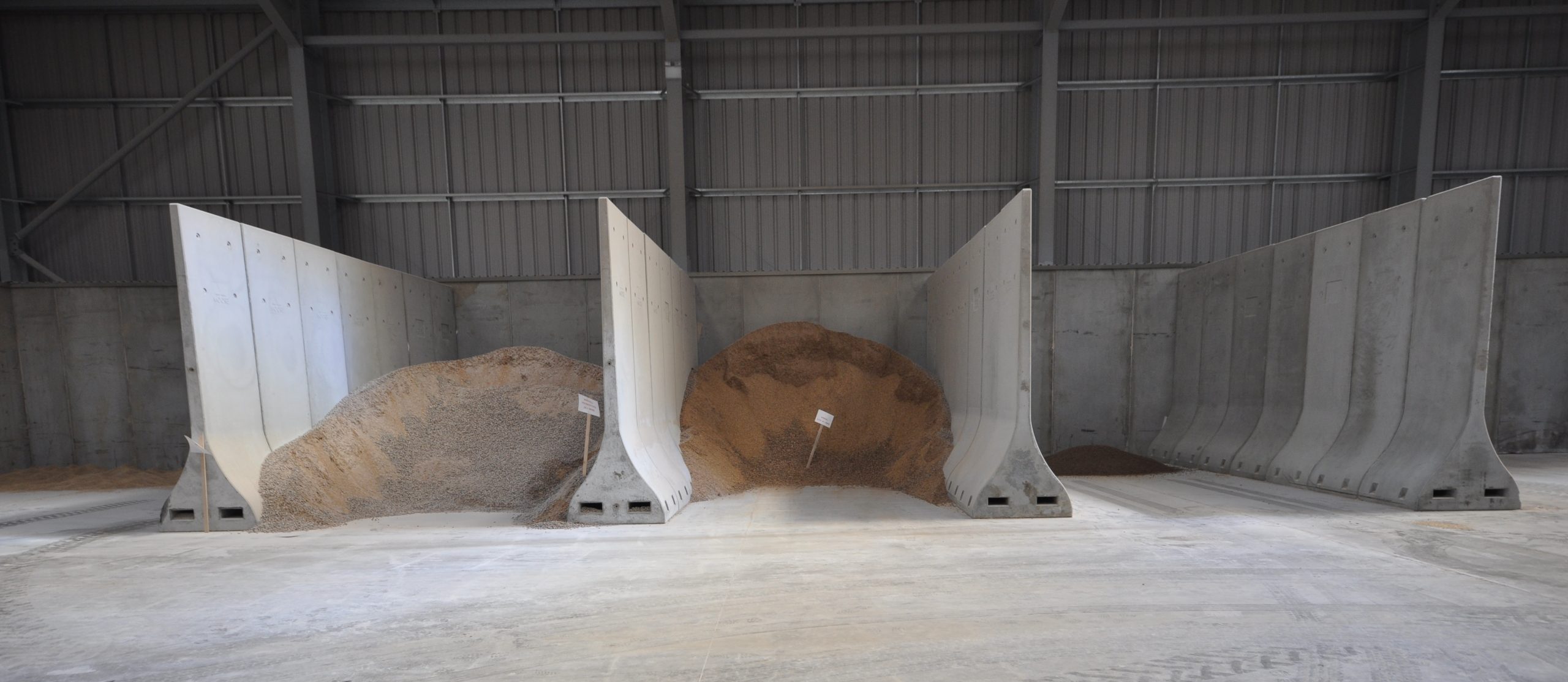

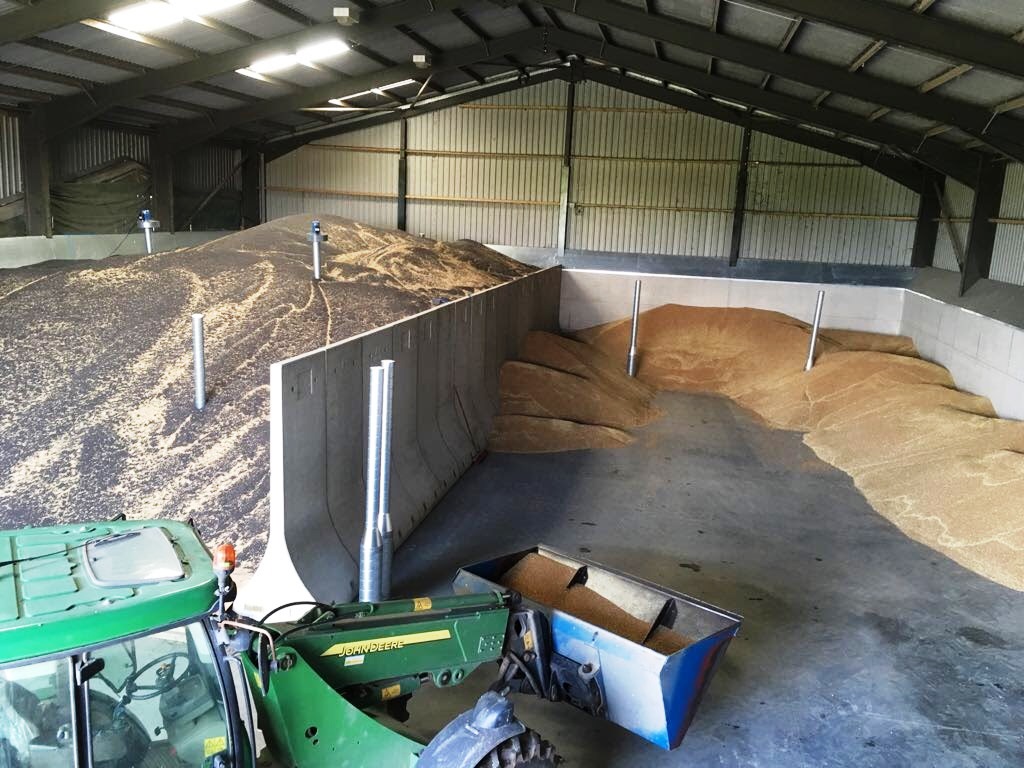

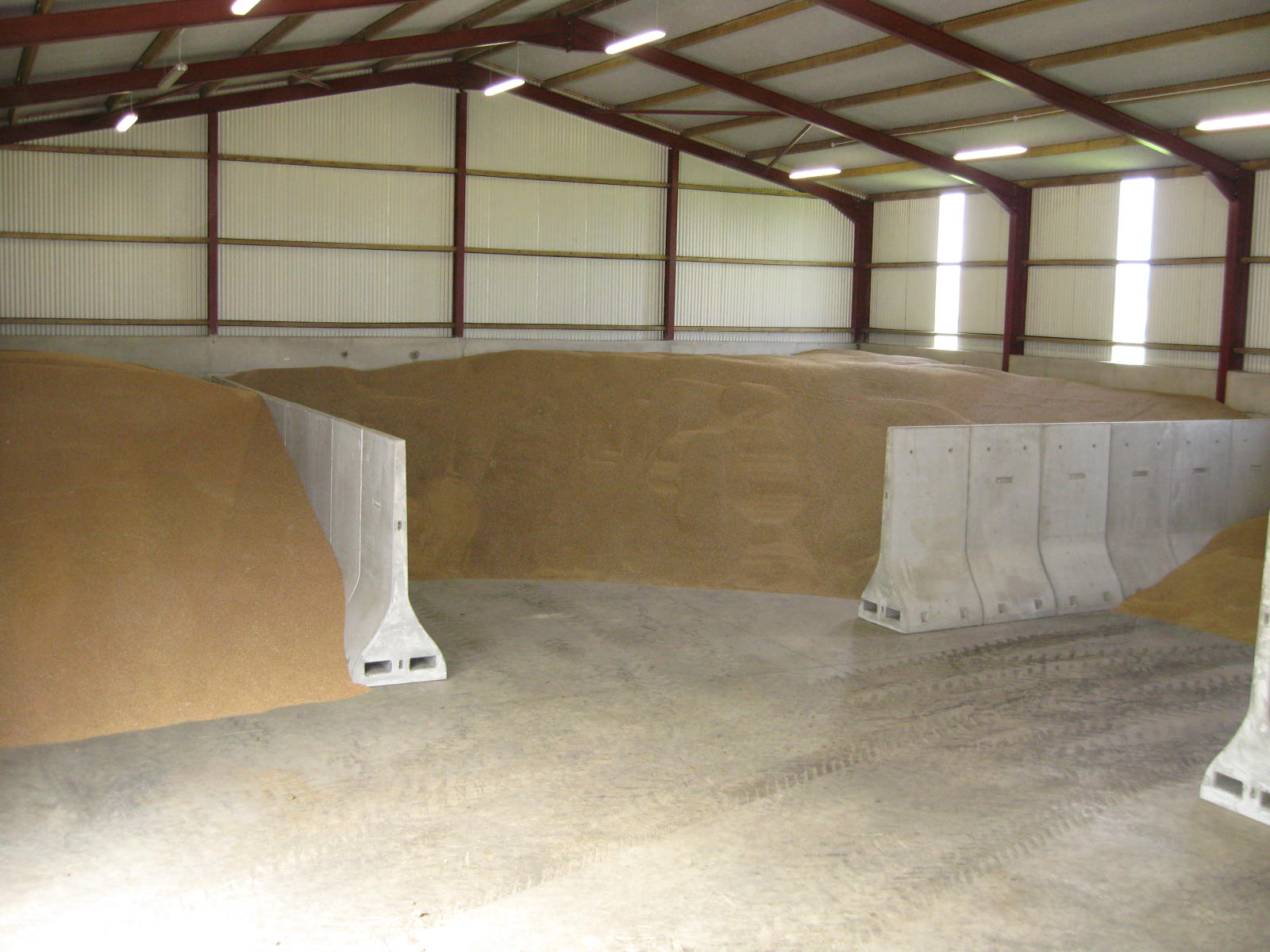

Concrete Bunker Walls or Bay Dividers are effective large volume storage systems and act as an effective way to store materials such as silage, feed, sand, gravel and much more. Using them will help eliminate waste, keeping your area clean and tidy.
They are the optimum shape and profile for the storage of grain, aggregate, solid fuels and other materials and are ideal for forming storage bays.
Moore Concrete’s Precast Bunker Wall has a unique design – Community Design Registration No. 001647983-0001.
Other storage solutions include Free Standing L Shaped Retaining Walls and Prestressed Wall Panels.
For further information regarding Concrete Bunker Walls Please contact a member of our agriculture Sales Team on 028 2565 2566, Ext 1
Make an Enquiry
-
Features & Specifications
Precast Concrete Bunker Walls are double load bearing

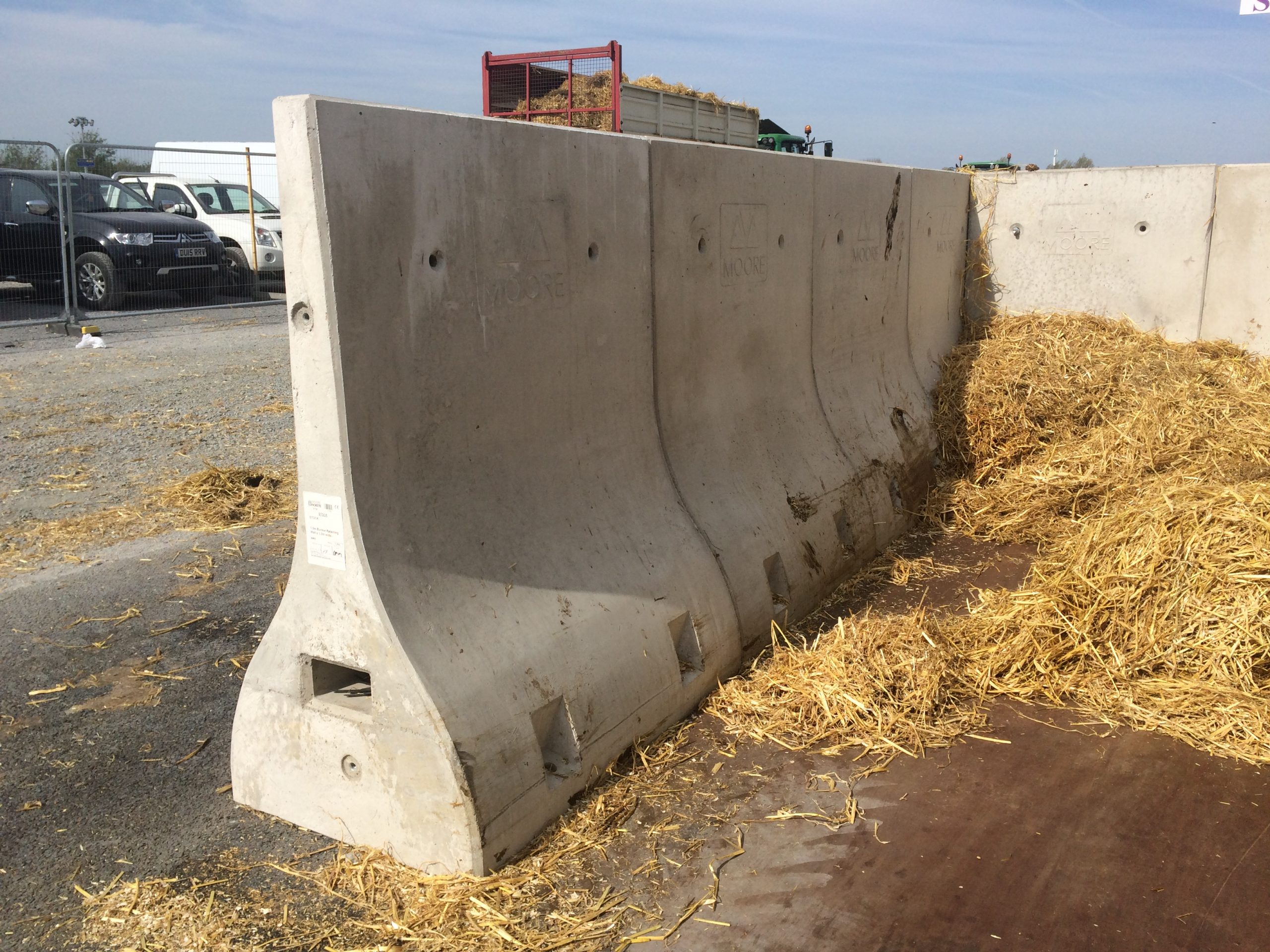

Ease of repositioning as Walls have forklift recesses incorporated into the base

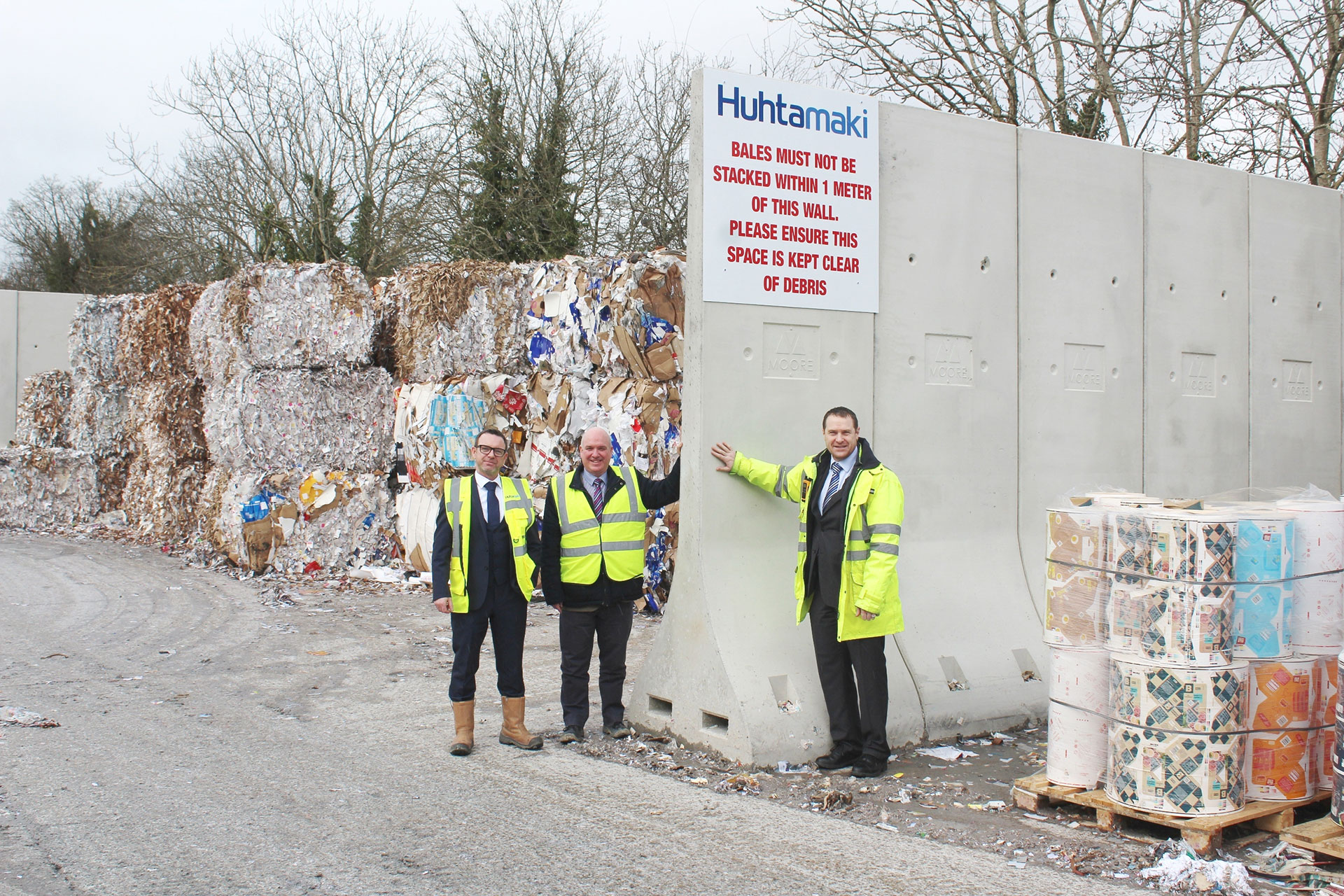

Bunker walls can be used as concrete bay dividers. Their versatility allows you to change the size of bays in line with business demands or crop yields
Unique curve design was developed to allow the free flow of material to the very bottom of the silo
Narrow base thus minimizing footprint
Walls up to 3.0m (10’) do not need bolted down when retaining material which has a density of less than 12kn/m3. This includes grain, solid fuels, recycling materials, wood chip, potatoes etc

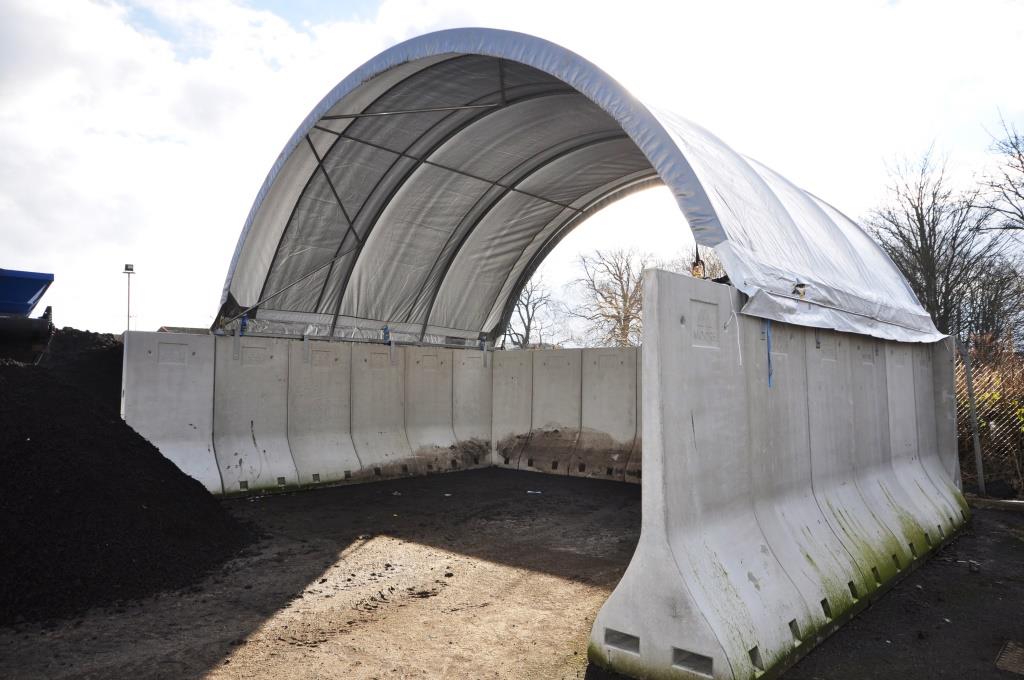

Corner units are also available allowing storage bays to be formed. Our diverse range of precast retaining walls products including Retaining L Walls, Prestressed Wall Panels and QuikBloc enable us to design a wide range storage bays of almost any size. The precast units can easily be repositioned to change bay sizes and create a flexible storage solution
All Walls are CE Manufactured to EN 15258
-
Product Dimensions
Concrete Bunker Wall Dimensions
Height
(mm)Width
(mm)Base
(mm)Weight
(kg)1500 (5’) 1200 710 1200 2400 (8’) * 1200 960 2000 3000 (10’) * 1200 1130 2670 3600 (12’) 1200 1130 2930 4000 (13’) 1200 1130 3550 4300 (14’) 1200 1130 3600 We manufacture a range of concrete bunker walls from 1.5m (5′) to 4.3m (14). All our sizes can be found in the table above. Precast concrete corner units are also available.
*Heavier profile wall available for silage loading
A heavier profile wall is available for retaining silage in both 2.4m (8’) and 3.0m (10’) heights. These will need to be bolted to a suitably reinforced slab.
-
Delivery & Install
Concrete Bunker Walls Delivery & Install Options
Moore Concrete Freestanding Bunker Walls are CE marked – manufactured in accordance with EN 15258.

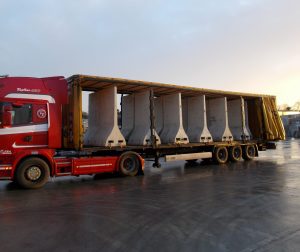

The heights 3m, 3.6m, 4.0m and 4.3m are shipped on their side due to height restrictions, whilst 1.5m & 2.4 are transported in their upright position.
Lifting eyes are cast that top, Moore Concrete provide pins inserted through these holes and then attached to lifting loops.
The video below demonstrates how to turn a Concrete Bunker Wall, using our top tip of using wooden laths to help prevent chipping.
For additional guidance see our Storage and Handling InstructionsDeclaration of Performance for Precast Concrete Retaining Walls available by clicking on this link.
For further information regarding Concrete Bunker Walls please contact a member of our Agri Sales Team on 028 2565 2566, Ext 1.
-
Product Applications
Concrete dividing bunker walls
Ideal for use as storage bays for

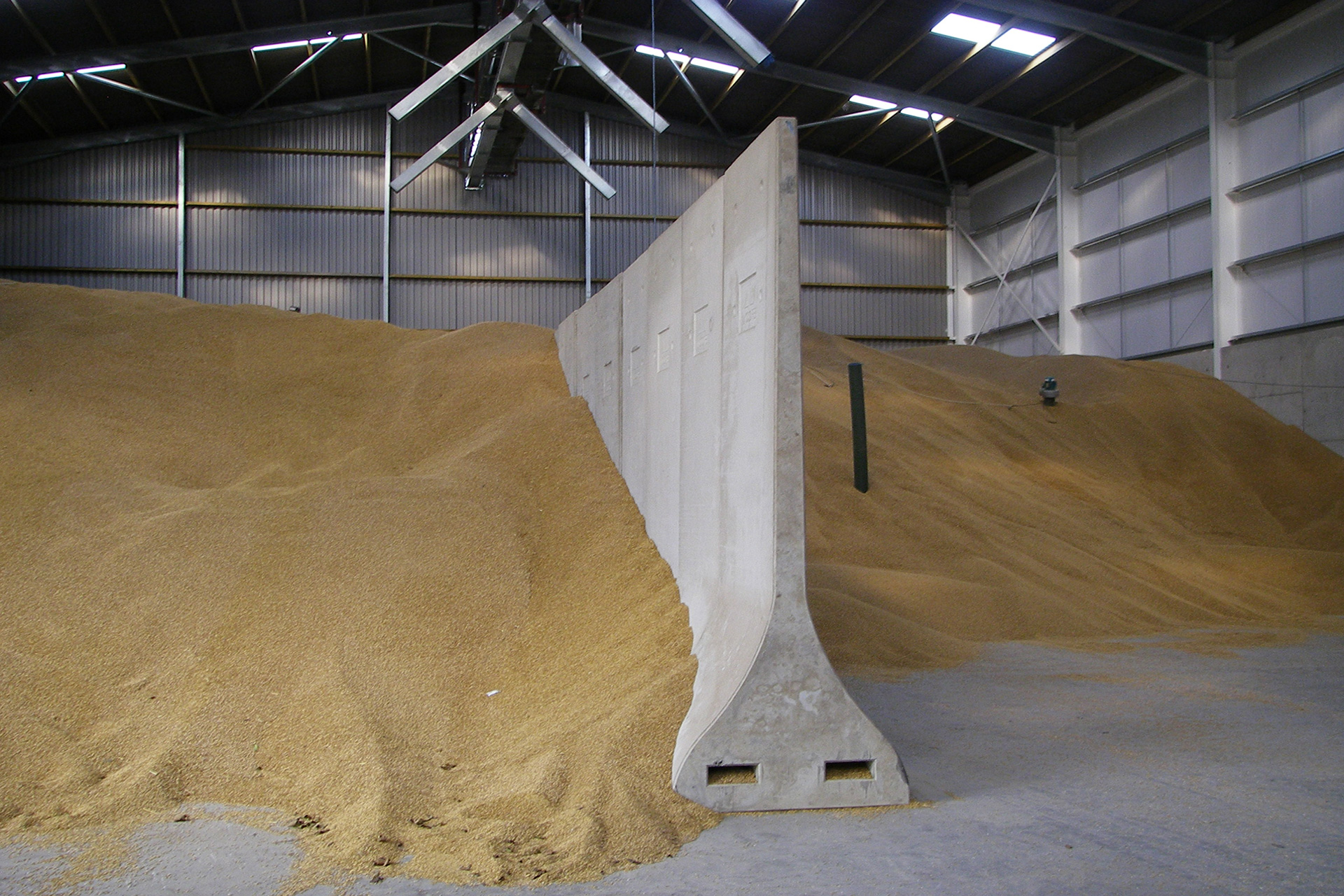

• Grain
• Woodchip
• Potatoes
• Recycling materials

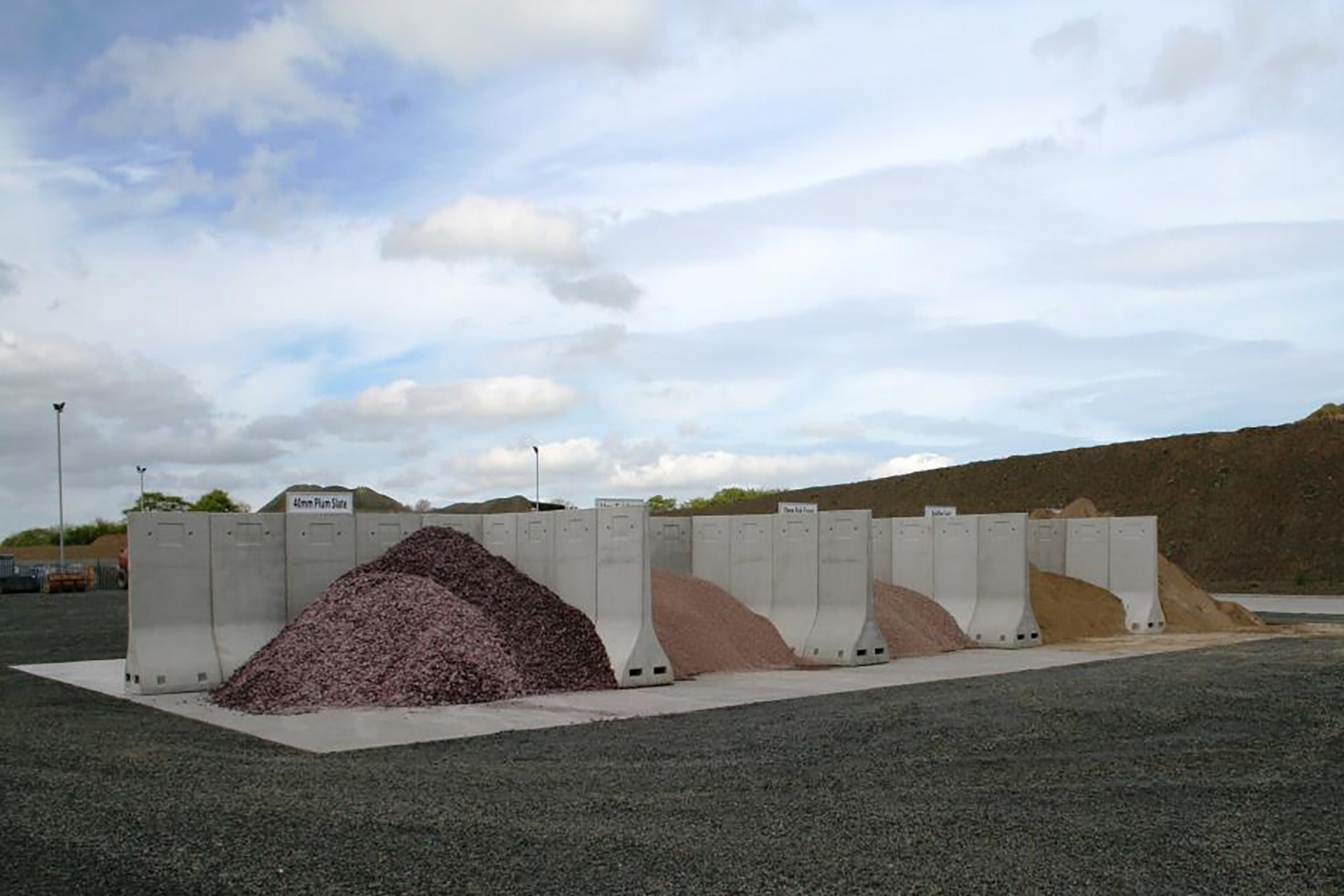

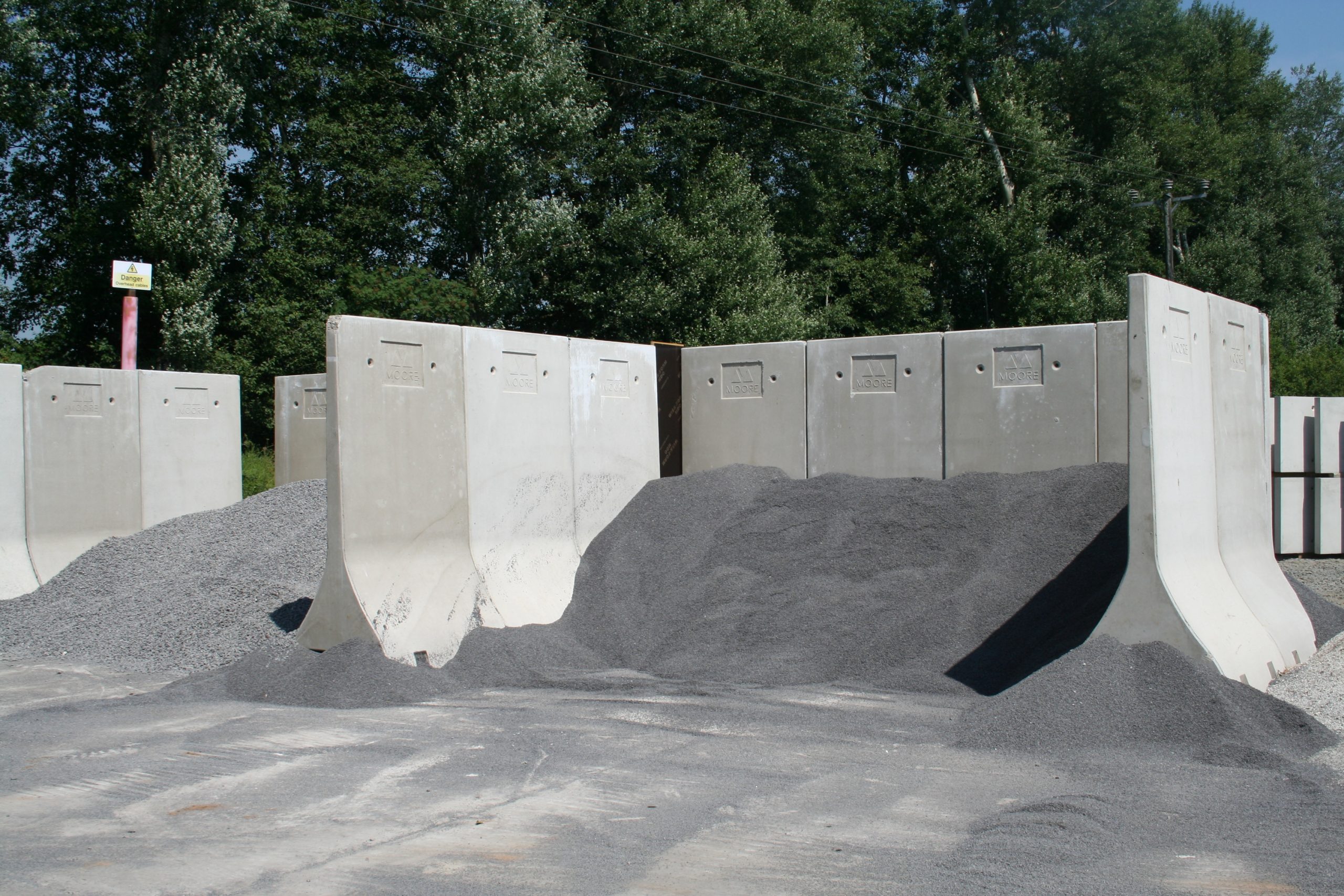

• Sand & Gravel
• Salt

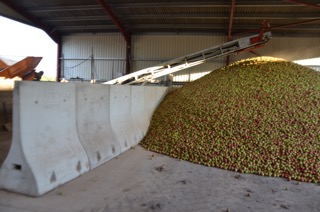

• Apples / Food Stuffs
• Solid fuel

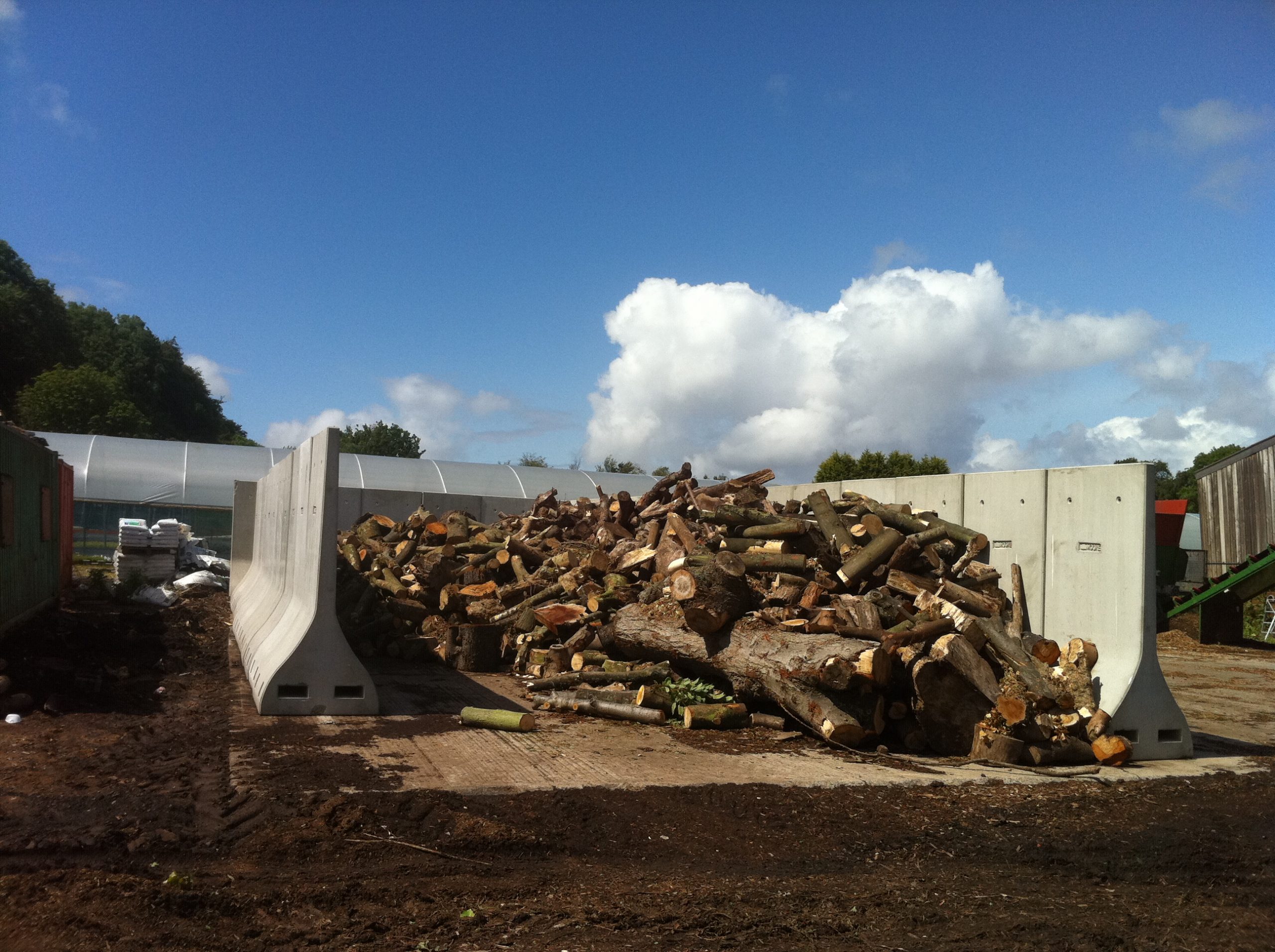

• Wood
• Silage (if bolted down)
• Emergency Exit Tunnel
Precast Concrete Bunker Walls are double load bearing
Ease of repositioning as Walls have forklift recesses incorporated into the base
Bunker walls can be used as concrete bay dividers. Their versatility allows you to change the size of bays in line with business demands or crop yields
Unique curve design was developed to allow the free flow of material to the very bottom of the silo
Narrow base thus minimizing footprint
Walls up to 3.0m (10’) do not need bolted down when retaining material which has a density of less than 12kn/m3. This includes grain, solid fuels, recycling materials, wood chip, potatoes etc
Corner units are also available allowing storage bays to be formed. Our diverse range of precast retaining walls products including Retaining L Walls, Prestressed Wall Panels and QuikBloc enable us to design a wide range storage bays of almost any size. The precast units can easily be repositioned to change bay sizes and create a flexible storage solution
All Walls are CE Manufactured to EN 15258
Concrete Bunker Wall Dimensions
| Height (mm) |
Width (mm) |
Base (mm) |
Weight (kg) |
|---|---|---|---|
| 1500 (5’) | 1200 | 710 | 1200 |
| 2400 (8’) * | 1200 | 960 | 2000 |
| 3000 (10’) * | 1200 | 1130 | 2670 |
| 3600 (12’) | 1200 | 1130 | 2930 |
| 4000 (13’) | 1200 | 1130 | 3550 |
| 4300 (14’) | 1200 | 1130 | 3600 |
We manufacture a range of concrete bunker walls from 1.5m (5′) to 4.3m (14). All our sizes can be found in the table above. Precast concrete corner units are also available.
*Heavier profile wall available for silage loading
A heavier profile wall is available for retaining silage in both 2.4m (8’) and 3.0m (10’) heights. These will need to be bolted to a suitably reinforced slab.
Concrete Bunker Walls Delivery & Install Options
Moore Concrete Freestanding Bunker Walls are CE marked – manufactured in accordance with EN 15258.
The heights 3m, 3.6m, 4.0m and 4.3m are shipped on their side due to height restrictions, whilst 1.5m & 2.4 are transported in their upright position.
Lifting eyes are cast that top, Moore Concrete provide pins inserted through these holes and then attached to lifting loops.
The video below demonstrates how to turn a Concrete Bunker Wall, using our top tip of using wooden laths to help prevent chipping.
For additional guidance see our Storage and Handling Instructions
Declaration of Performance for Precast Concrete Retaining Walls available by clicking on this link.
For further information regarding Concrete Bunker Walls please contact a member of our Agri Sales Team on 028 2565 2566, Ext 1.
Concrete dividing bunker walls
Ideal for use as storage bays for
• Grain
• Woodchip
• Potatoes
• Recycling materials
• Sand & Gravel
• Salt
• Apples / Food Stuffs
• Solid fuel
• Wood
• Silage (if bolted down)
• Emergency Exit Tunnel
